ESD5Z3V3

Part No ESD5Z3V3
Manufacturer MDD
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 8.4VC SOD523
Datasheet
ESD5Z3V3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr MDD
Series SOD-523
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V
Voltage - Breakdown (Min) 5V
Voltage - Clamping (Max) @ Ipp 8.4V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 134W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 105pF @ 1MHz
Temperature Range - Operating -50°C ~ 150°C
Mounting Type Surface Mount

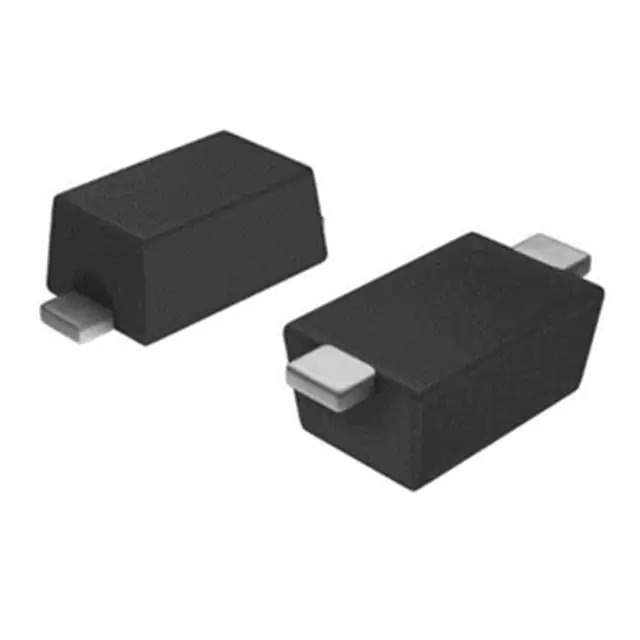

Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 871174-ESD5Z3V3
Ultra Librarian 3D Model Ultra Librarian ESD5Z3V3 CAD Model

Description

The 871174-ESD5Z3V3 is a Zener type transient voltage suppressor diode designed for general purpose applications.

  • Diode Type: Zener
  • Application: General Purpose
  • Series: SOD-523
  • Packaging: Tape and Reel
  • Reverse Standoff Voltage: 3.3V
  • Breakdown Voltage: 5V
  • Clamping Voltage: 8.4V @ a peak pulse power of 134W
  • Diode Configuration: Unidirectional
  • Peak Pulse Current: 5A
  • Mounting Type: Surface Mountable
  • Operating Temperature Range: -50°C to 150°C
