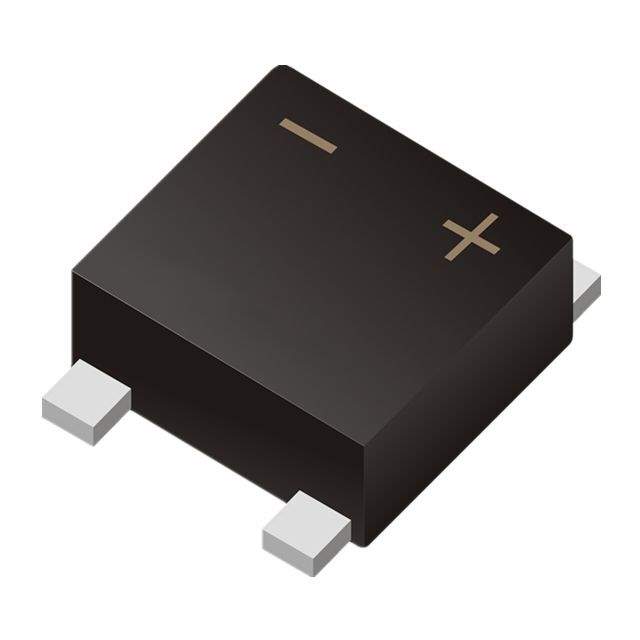

MSB30M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bridge Rectifier Single Phase Standard 1 kV Surface Mount UMSB
Manufacturer MDD
Series UMSB
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 4-SMD, Flat Leads
Case / Package UMSB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number UMSB30M000S30A, 3372-MSB30MTR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 885943-MSB30M
Ultra Librarian 3D Model Ultra Librarian MSB30M CAD Model

Description

The MDD MSB30M is an electronic component that falls under the category of discrete semiconductor products. The supply and demand status of this product is limited.

  • Product Category: Discrete Semiconductor Products
  • Supply and Demand Status: Limited
  • Product Features: Bridge Rectifier Single Phase Standard 1 kV Surface Mount UMSB
  • Package: 4-SMD, Flat Leads
  • Mounting Type: Surface Mount
  • Quantity per Package: 5000
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
  • Other Part Numbers: UMSB30M000S30A, 3372-MSB30MTR
