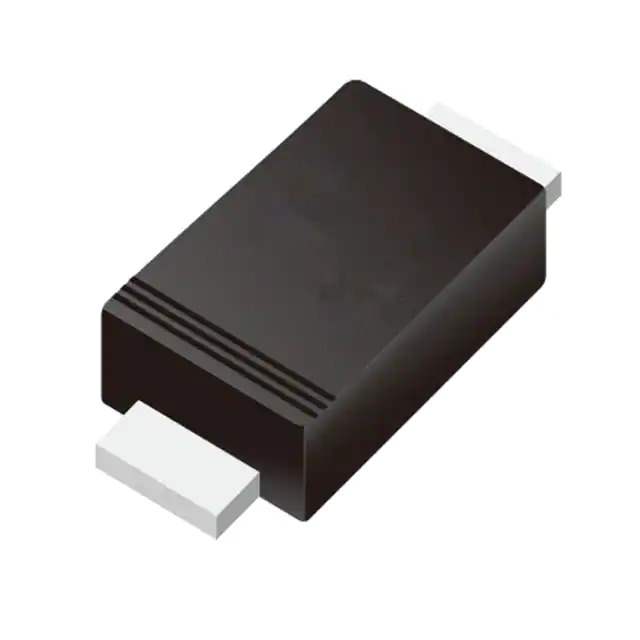

SS210F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMAF
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 100 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package SMAF
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676282-SS210F
Ultra Librarian 3D Model Ultra Librarian SS210F CAD Model

Description

The 676282-SS210F is a Schottky diode from the SMAF series.

  • Recovery Time: less than 500ns
  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 2A
  • Reverse Leakage Current: 300µA @ Maximum Reverse Voltage
  • Capacitance: 80pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Package Type: DO-221AC, SMA Flat Leads
  • Mounting Type: Surface Mountable
  • Standard Package: 6,000 pieces
  • Product Status: Active
  • Supplier: MDD
