Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMB
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 200 V
Capacitance @ Vr, F 180pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1367031-SS2200B
Ultra Librarian 3D Model Ultra Librarian SS2200B CAD Model

Description

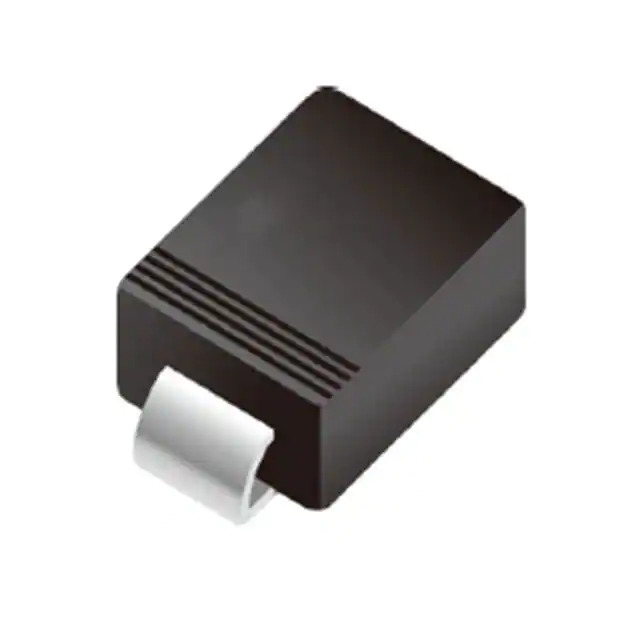

The SS2200B is a Schottky diode rectifier from MDD.

  • Manufacturer: MDD
  • Series: SMB
  • Operating Temperature Range: -55°C to 150°C
  • Maximum Reverse Voltage: 200V
  • Average Rectified Current: 2A
  • Forward Voltage: 950mV @ 2A
  • Recovery Speed:
  • Reverse Leakage Current: 200μA @ 200V
  • Package: DO-214AA, SMB
  • Mounting Type: Surface Mount
  • REACH: Compliant
  • ECCN: EAR99
