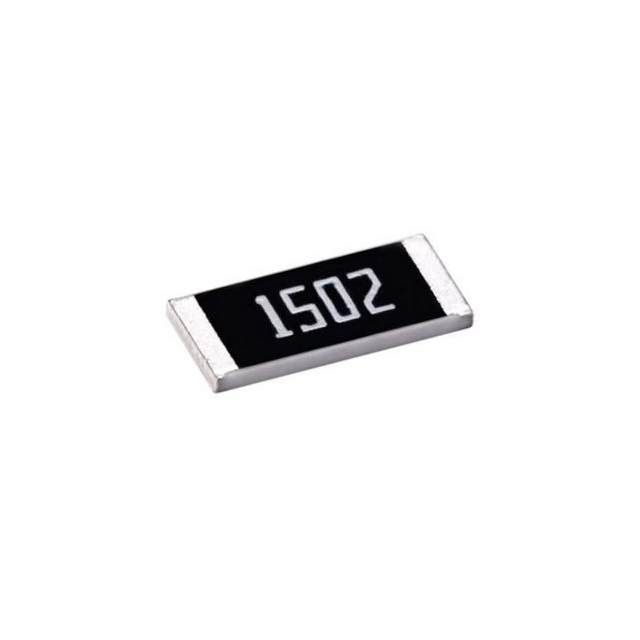

CR16300J Real Image
Same model may have multiple batches, images only for reference.

CR16300J

Part No CR16300J
Manufacturer Meritek
Catalog Chip Resistor - Surface Mount
Description RES SMD 30 OHM 5% 1/10W 0603  /  30 Ohms ±5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thick Film
Datasheet
CR16300J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Meritek
Series CR
Package Tape & Reel (TR)
Resistance 30 Ohms
Tolerance ±5%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2997-CR16300JTR
Standard Package 5,000
Win Source Part Number 1115536-CR16300J
Ultra Librarian 3D Model Ultra Librarian CR16300J CAD Model

Description

The CR16300J is a chip resistor that is part of the CR series from Meritek.

  • Series: CR
  • Mounting Type: Surface Mount
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Resistance: 30 Ohms
  • Power Rating: 0.1W, 1/10W
  • Operating Temperature: -55°C to 155°C
  • Package: 0603 (1608 Metric)
  • Packaging: Tape and Reel (TR)
  • Standard Package: 5,000
  • REACH: Unaffected
  • ECCN: EAR99
