Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Microchip Technology
Package Bulk
Product Status Active
Voltage - Zener (Nom) (Vz) 12 V
Tolerance ±5%
Power - Max 10 W
Impedance (Max) (Zzt) 3 Ohms
Current - Reverse Leakage @ Vr 10 µA @ 9.1 V
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 2 A
Temperature Range - Operating -65°C ~ 175°C
Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-213AA
Base Product Number 1N2976
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 905653-1N2976B
Ultra Librarian 3D Model Ultra Librarian 1N2976B CAD Model

Description

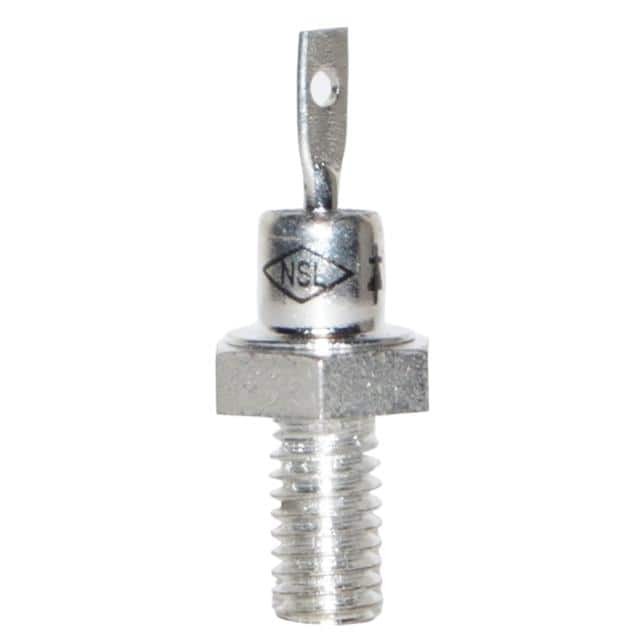

The 1N2976B is a robust Zener diode from the reputable manufacturer Microchip Technology. This component is designed to provide a reliable voltage reference and is commonly used in voltage regulation applications. With its precise voltage control and stability, it is an ideal choice for maintaining consistent voltages across electronic circuits.

Key Features:

  • Nominal Zener Voltage: The 1N2976B offers a Zener voltage of 10V, making it suitable for a variety of standard voltage regulation tasks in electronic circuits.
  • Power Dissipation: With a power dissipation rating of 10W, this Zener diode can handle significant power levels, making it suitable for high-power applications.
  • Tolerance: The voltage tolerance of ±5% ensures precise voltage regulation, providing stability and reliability in the performance of your electronic designs.
  • Temperature Stability: The diode's performance is stable over a wide temperature range, ensuring reliable operation under varying environmental conditions.
  • Package: Encased in a DO-4 package, the 1N2976B is designed for through-hole mounting, which makes it easy to install on a variety of printed circuit boards.
  • Quality and Reliability: Microchip Technology is known for its commitment to quality, and the 1N2976B is no exception. It is manufactured to high standards to ensure consistent performance and longevity.

Applications:

The 1N2976B Zener diode is widely used in a range of applications, including:

  • Power supply circuits
  • Voltage regulation modules
  • Overvoltage protection circuits
  • Switching power supplies
  • Analog circuits

With its reliable operation and Microchip's reputation for quality, the 1N2976B Zener diode is an excellent choice for designers and engineers looking to incorporate a stable voltage reference in their electronic projects.
