Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory>Memory
Manufacturer Microchip Technology
Packaging Tube
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 16Kb (2K x 8)
Memory Interface SPI
Clock Frequency 10 MHz
Write Cycle Time - Word, Page 5ms
Voltage - Supply 2.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 8-TSSOP
Base Product Number 25LC160
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0051
Standard Package 100
Win Source Part Number 1323414-25LC160D-E/ST
Ultra Librarian 3D Model Ultra Librarian 25LC160D-E/ST CAD Model

Description

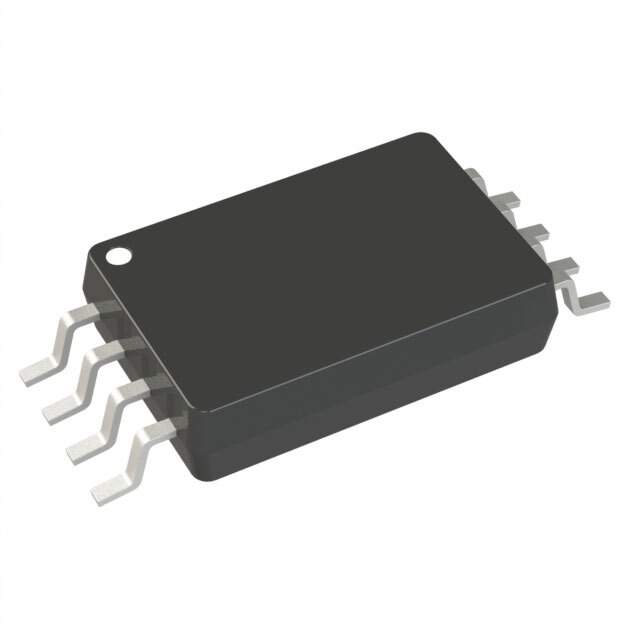

Microchip Technology 25LC160D-E/ST Serial EEPROM

The 25LC160D-E/ST is a high-quality Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) device from the renowned manufacturer Microchip Technology. This EEPROM is a part of the 25XX series, which is well-known for its reliable data storage and endurance. The device offers a 16 Kbit memory size, which is ideal for applications that require non-volatile memory to store configurations, settings, or small amounts of data that must be preserved during power loss.

With its SPI (Serial Peripheral Interface) bus, the 25LC160D-E/ST ensures simple integration into a wide range of microcontroller-based systems. The SPI interface is known for its high-speed data transfer capabilities, making this EEPROM an excellent choice for applications that require fast and efficient data access. The use of the SPI bus also allows for easy daisy-chaining of multiple EEPROM devices on the same bus, enabling designers to scale their memory needs without significant changes to the communication protocol.

The 25LC160D-E/ST operates over a voltage range of 2.5V to 5.5V, making it compatible with both 3.3V and 5V logic levels. This flexibility allows it to be used in various applications, from battery-powered devices to industrial control systems. The device also features a self-timed erase and write cycle, meaning that no external erase/write timing control is necessary, simplifying the software development process.

Furthermore, the EEPROM is available in an 8-pin TSSOP (Thin Shrink Small Outline Package) form factor under the part number 25LC160D-E/ST. This compact package is suitable for space-constrained applications, while still providing robustness for industrial environments. The device also boasts a wide temperature range, functioning reliably from -40°C to +85°C, which is essential for applications that may be subjected to extreme conditions.

With its long data retention ability and high endurance for write cycles, the Microchip Technology 25LC160D-E/ST EEPROM is an excellent choice for designers looking for a dependable and flexible non-volatile memory solution. Whether it's used in consumer electronics, automotive systems, or industrial controls, this EEPROM brings a balance of performance, power efficiency, and durability.

For further information and complete technical specifications, interested parties should consult the datasheet provided by Microchip Technology or contact their support for additional assistance.
