Products specifications

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Microchip Technology
Package Bulk
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Half Bridge)
Drain to Source Voltage (Vdss) 200V
Current - Continuous Drain (Id) @ 25°C 372A
Rds On (Max) @ Id, Vgs 5mOhm @ 186A, 10V
Vgs(th) (Max) @ Id 5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs 560nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 28900pF @ 25V
Power - Max 1250W
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SP6
Supplier Device Package SP6
Base Product Number APTM20
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1349477-APTM20AM04FG
Ultra Librarian 3D Model Ultra Librarian APTM20AM04FG CAD Model

Description

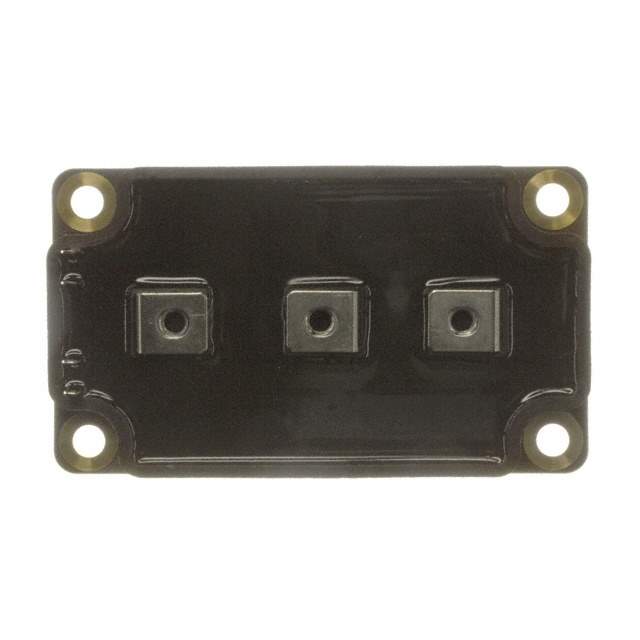

The APTM20AM04FG is a cutting-edge power module from the renowned manufacturer Microchip Technology, designed to deliver exceptional performance and reliability in a wide range of applications. This module is part of Microchip's extensive portfolio of power management solutions, which are known for their high quality and innovative features.

Key Features

  • High Efficiency: The APTM20AM04FG is engineered for maximum efficiency, which is crucial for reducing heat generation and improving system performance.
  • Power Density: With its compact design, this module offers high power density, making it an excellent choice for space-constrained applications.
  • Robust Construction: This product is built with durability in mind, ensuring that it can withstand harsh operating conditions and provide a long service life.
  • Integrated Features: The module includes integrated features such as over-temperature protection, over-current protection, and under-voltage lockout, which help to safeguard the system and enhance reliability.
  • Easy Integration: The APTM20AM04FG is designed for easy integration into a variety of systems, with user-friendly interfacing that simplifies the design-in process.

Applications

This power module is versatile and can be used in numerous applications, including but not limited to:

  • Telecommunications equipment
  • Industrial systems
  • Automotive electronics
  • Renewable energy systems
  • Networking and data storage

Technical Specifications

The APTM20AM04FG boasts a range of technical specifications that make it a top choice for designers and engineers. It operates with a high switching frequency, which allows for smaller external components and a more compact overall design. The module's advanced thermal management capabilities ensure it operates within safe temperature ranges under various load conditions.

For more detailed technical information, datasheets, and support resources, customers are encouraged to visit Microchip Technology's official website or contact their customer support team.
