Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Microchip Technology
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 2Mb (256K x 8)
Write Cycle Time - Word, Page 10ms
Access Time 70ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TC)
Mounting Style Through Hole
Package 32-DIP (0.600", 15.24mm)
Manufacturer Package 32-DIP
Win Source Part Number 768963-AT29C020-70PC
Popularity Medium
Supply and Demand Status Limited
Family Name AT29C020
Introduction Date May 02, 1997
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AT29C020-70PC CAD Model

Description

Microchip Technology AT29C020-70PC Product Overview

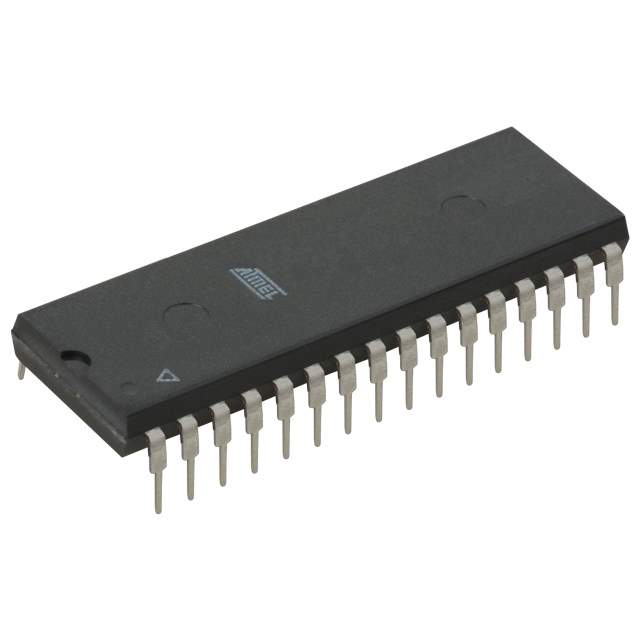

The Microchip Technology AT29C020-70PC is a high-performance, 2-megabit Flash memory component that offers a fast and flexible non-volatile storage solution for a wide range of embedded systems. This device operates at a speed of 70ns, making it suitable for applications requiring quick access to code or data, such as boot memory in computers, telecommunications, and advanced consumer electronics.

Key Features:

  • High-Density Storage: With 2 megabits of memory, the AT29C020-70PC provides ample space for firmware storage, configuration parameters, or any data requiring frequent updates.
  • Speed: The access time of 70 nanoseconds ensures that data can be read quickly, improving the overall performance of the system in which it is used.
  • Industry-Standard Packaging: The device comes in a 32-lead, 0.600" wide, plastic DIP package, making it easy to handle and integrate into existing PCB designs.
  • Low Power Consumption: Designed for power efficiency, this Flash memory helps to minimize power usage in battery-powered devices, contributing to longer operational life.
  • Flexible Programming: The AT29C020-70PC supports both in-system programming and conventional programming, providing versatility for different development and production requirements.
  • Endurance: The Flash memory offers a high write endurance cycle, ensuring reliability and a long lifespan even with frequent write operations.

Applications:

The AT29C020-70PC is ideal for a variety of applications, including:

  • Boot memory for PCs and servers
  • Embedded controllers
  • Telecommunication systems
  • Networking hardware
  • Consumer electronics

Technical Specifications:

Parameter Value Memory Size 2Mb (256K x 8) Write Cycle Time 10ms Access Time 70ns Operating Voltage 4.5V to 5.5V Temperature Range 0°C to 70°C Package Type 32-lead PDIP

In conclusion, the Microchip Technology AT29C020-70PC Flash memory chip offers a robust storage solution with its combination of speed, high-density, and low power consumption, making it an excellent choice for designers aiming to enhance the capabilities of their embedded systems.
