Products specifications Report Issue?

Categories Integrated Circuits (ICs)

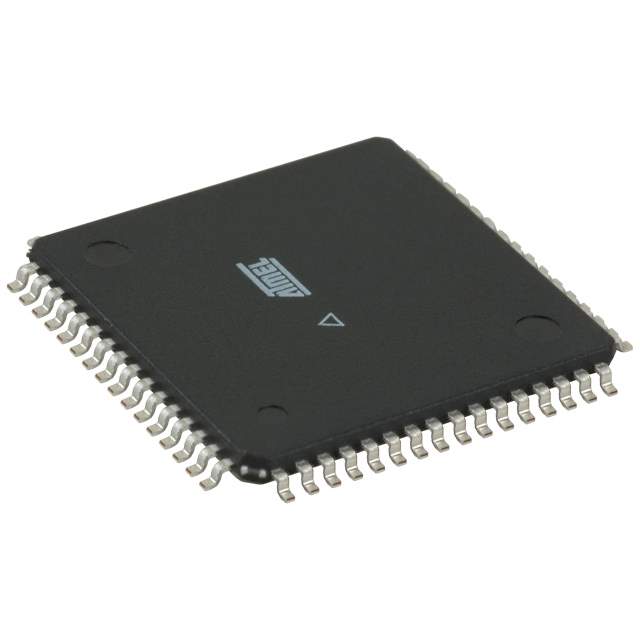

Features AVR series Microcontroller IC 8-Bit 4MHz 128KB (64K x 16) FLASH 64-TQFP (14x14)
Manufacturer Microchip Technology
Series AVR® ATmega
Package Tray
Part Status Obsolete
Core Processor AVR
Core Size 8-Bit
Speed 4MHz
Connectivity SPI, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 32
Program Memory Size 128KB (64K x 16)
Program Memory Type FLASH
EEPROM Size 4K x 8
Supply Voltage 2.7V ~ 3.6V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C
Mounting Surface Mount
Package 64-TQFP
Case / Package 64-TQFP (14x14)
Family Name ATMEGA103
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 90
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862332-ATMEGA103L-4AC
Ultra Librarian 3D Model Ultra Librarian ATMEGA103L-4AC CAD Model

Description

Microchip Technology's ATMEGA103L-4AC Microcontroller

The ATMEGA103L-4AC is a powerful microcontroller unit (MCU) from Microchip Technology, designed to offer a blend of efficiency, versatility, and performance for a wide range of embedded applications. This 8-bit MCU is based on the advanced RISC architecture, making it an ideal choice for developers looking for a robust platform for their design projects.

Featuring a large 128KB of in-system self-programmable flash memory, the ATMEGA103L-4AC provides ample space for complex applications and the flexibility to update firmware in the field. The device operates at a maximum frequency of 4MHz, balancing power consumption and processing speed, making it well-suited for battery-operated devices and power-sensitive applications.

With its 4KB of SRAM and 4KB of EEPROM, this microcontroller allows for efficient data storage and retrieval operations, which are crucial for real-time data processing tasks. The EEPROM section is particularly useful for storing non-volatile data that must be preserved across power cycles.

The ATMEGA103L-4AC is equipped with a range of peripherals that enhance its functionality. It includes a 10-bit analog-to-digital converter (ADC) with multiple channels, enabling the MCU to interface with analog sensors and convert their signals into digital data for processing. It also features a programmable serial USART, which provides serial communication capabilities for interfacing with other microcontrollers, computers, or network modules.

Additional features include multiple 16-bit timers with compare modes, PWM channels, and an internal watchdog timer, which help in managing time-sensitive tasks and ensuring system reliability. The MCU also supports various power-saving modes, allowing developers to optimize power consumption according to the application's needs.

The ATMEGA103L-4AC comes in a 64-pin TQFP package, which is compact yet offers enough pins for interfacing with external components. It is fully supported by Microchip's development tools, including compilers, debuggers, and programmers, providing a comprehensive ecosystem for developers to bring their projects to fruition.

In summary, the ATMEGA103L-4AC from Microchip Technology is a feature-rich and reliable microcontroller that offers a perfect solution for developers seeking a low-power, high-performance MCU for their embedded systems.
