ATTINY814-SSN Microcontroller Overview

The ATTINY814-SSN is a versatile and powerful microcontroller from Microchip Technology, designed for applications that require a compact, yet feature-rich MCU. This member of the tinyAVR 1-Series utilizes Microchip's advanced picoPower technology, ensuring high performance with minimal power consumption.

Key Features

• Core: The ATTINY814-SSN boasts an 8-bit AVR processor with a maximum clock frequency of 20MHz, providing a perfect balance between speed and power efficiency.
• Memory: It comes with 8KB of in-system self-programmable flash memory, 512 Bytes of EEPROM, and 512 Bytes of SRAM, offering ample space for code and data storage.
• I/O and Peripherals: The device includes a variety of peripherals, such as a 12-channel 10-bit ADC, a 10-bit DAC, a comparator, and a programmable analog comparator, making it ideal for interfacing with various sensors and actuators.
• Communication: For communication purposes, the ATTINY814-SSN is equipped with a USART, SPI, and I2C interfaces, allowing for easy integration into a wide range of systems.

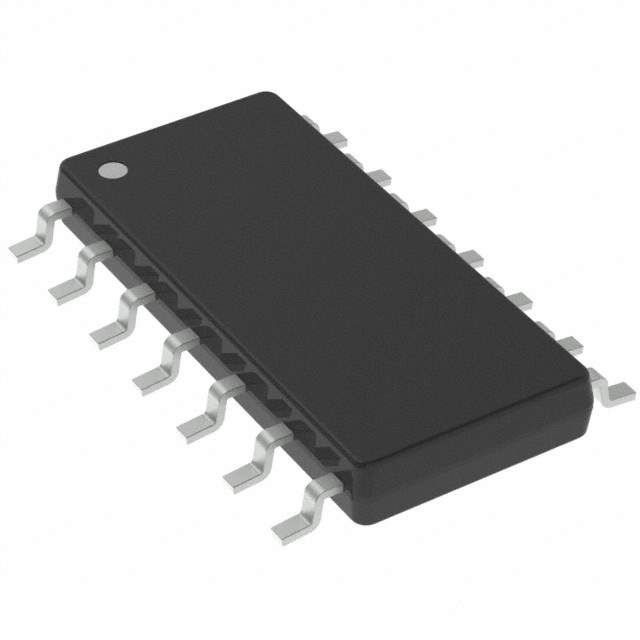

• Packages: The SSN package is a compact 14-pin SOIC, which is suitable for space-constrained applications.
• Operating Voltage: It operates within a voltage range of 1.8V to 5.5V, enabling its use in various power environments.
• Temperature Range: The microcontroller is designed to operate within an industrial temperature range of -40°C to 85°C.

Applications

The ATTINY814-SSN is ideal for a wide array of applications, including but not limited to:

• Consumer Electronics
• Internet of Things (IoT) devices
• Wearable Technology
• Industrial Control Systems
• Automotive Systems
• Battery Management

With its robust feature set and low power consumption, the ATTINY814-SSN from Microchip Technology is an excellent choice for designers looking to develop efficient and reliable embedded systems.
