Microchip Technology's ATTINY816-MN Microcontroller

The ATTINY816-MN is a versatile and powerful microcontroller from Microchip Technology, designed for applications that require a compact footprint without compromising on performance. This microcontroller is part of the tinyAVR® 1-series and is well-suited for a wide range of applications, from consumer electronics to industrial control systems.

The ATTINY816-MN is built on a high-performance, low-power AVR® RISC architecture that operates at up to 20MHz. It comes with 8KB of in-system self-programmable flash memory, 512 Bytes of EEPROM, and 2KB SRAM, providing ample space for complex applications and data storage. The device supports a wide voltage range of 1.8V to 5.5V, making it flexible for various power supply conditions.

This microcontroller features a 12-channel, 10-bit Analog-to-Digital Converter (ADC) with a differential input and programmable gain amplifier, allowing for precise sensor signal acquisition. The ATTINY816-MN also includes a Digital-to-Analog Converter (DAC), comparator, and a variety of communication interfaces such as SPI, I2C, and USART, which facilitate easy data exchange with peripheral devices.

One of the key attributes of the ATTINY816-MN is its rich set of peripherals. It includes a Configurable Custom Logic (CCL) block, which allows users to create custom logic functions and reduce the need for external components. In addition, the device has a 16-bit Real-Time Counter (RTC), two 16-bit Timer/Counters, and a 12-bit Timer/Counter with PWM, which are essential for timing-related tasks.

For enhanced security, the ATTINY816-MN features a unique serial number and a CRC-32 generator to ensure data integrity during communication. Its Power-on Reset and Programmable Brown-out Detection mechanisms ensure reliable operation under fluctuating power conditions.

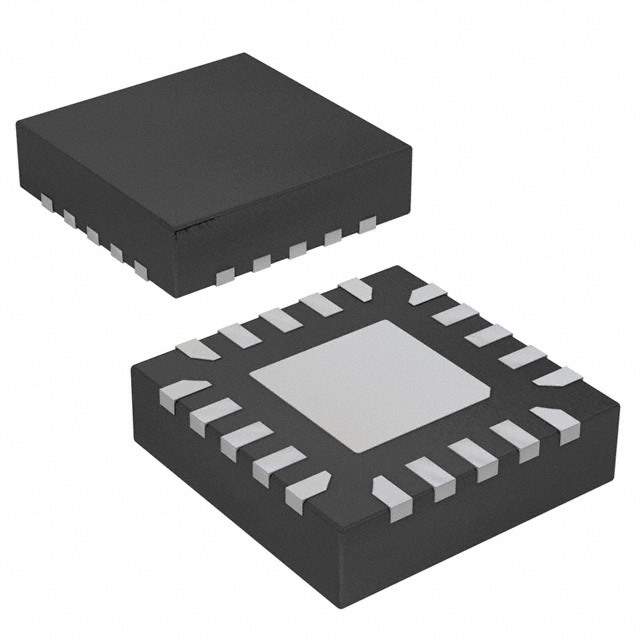

Available in a 20-pin QFN package, the ATTINY816-MN is ideal for space-constrained applications. With its robust feature set and the support of Microchip's comprehensive development tools, this microcontroller is an excellent choice for designers looking to create efficient and innovative embedded systems.

Overall, the ATTINY816-MN from Microchip Technology is a feature-rich, high-performance microcontroller that offers a perfect balance between size and capability, making it a go-to solution for a myriad of embedded design projects.
