Products specifications

Category Crystals, Oscillators, Resonators - Pin Configurable/Selectable Oscillators
Mfr Microchip Technology
Series DSC60XX
Package Tube
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 24MHz, 48MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height 0.035" (0.89mm)

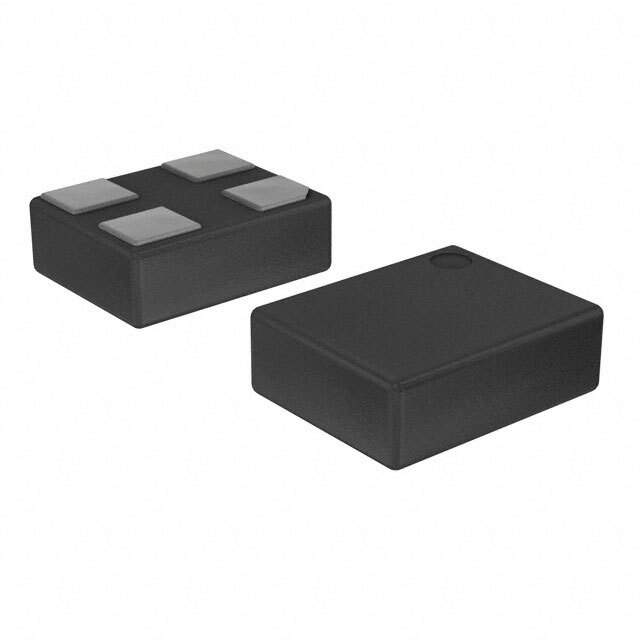

Package / Case 4-VLGA
Standard Package 140
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1344173-DSC6021JI2A-00A2
Ultra Librarian 3D Model Ultra Librarian DSC6021JI2A-00A2 CAD Model

Description

Product Overview: DSC6021JI2A-00A2 by Microchip Technology

The DSC6021JI2A-00A2 is a high-performance, low-power MEMS oscillator from Microchip Technology's comprehensive portfolio of frequency control solutions. This miniature device is engineered to deliver exceptional stability and reliability for a wide range of applications, including industrial, automotive, and consumer electronics. Its small footprint and surface-mount package make it an ideal choice for space-constrained designs.

Key Features

  • Frequency Range: The DSC6021 series offers a versatile frequency range that can be factory programmed to your specific needs, ensuring precise clocking for your application.
  • Low Power Consumption: Designed with energy efficiency in mind, this oscillator operates with a low current draw, making it suitable for battery-powered devices.
  • High Stability: It provides excellent frequency stability across the entire operating temperature range, maintaining consistent performance under varying environmental conditions.
  • Compact Size: The small 2.5x2.0 mm package allows for high-density mounting and is perfect for modern, miniaturized electronic assemblies.
  • Supply Voltage: It supports a 2.5V to 3.3V supply voltage range, providing flexibility for different design requirements and compatibility with a broad range of circuits.
  • Output Type: The DSC6021JI2A-00A2 offers a CMOS/LVCMOS compatible output, ensuring easy integration with most digital systems.

Applications

The versatility of the DSC6021JI2A-00A2 makes it an excellent choice for various applications, including:

  • Portable and wearable technology
  • Wireless communication systems
  • Internet of Things (IoT) devices
  • Industrial control systems
  • Automotive electronics
  • Medical monitoring equipment

With its robust performance and compact design, the DSC6021JI2A-00A2 from Microchip Technology stands as a leading solution for designers looking to optimize their systems with a reliable and efficient clock source.
