Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Programmable Oscillators
Mfr Microchip Technology
Series DSC61XX
Package Bulk
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Available Frequency Range 1 MHz ~ 100 MHz
Function Standby
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability (Total) ±25ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 3mA (Typ)
Ratings AEC-Q100
Mounting Type Surface Mount

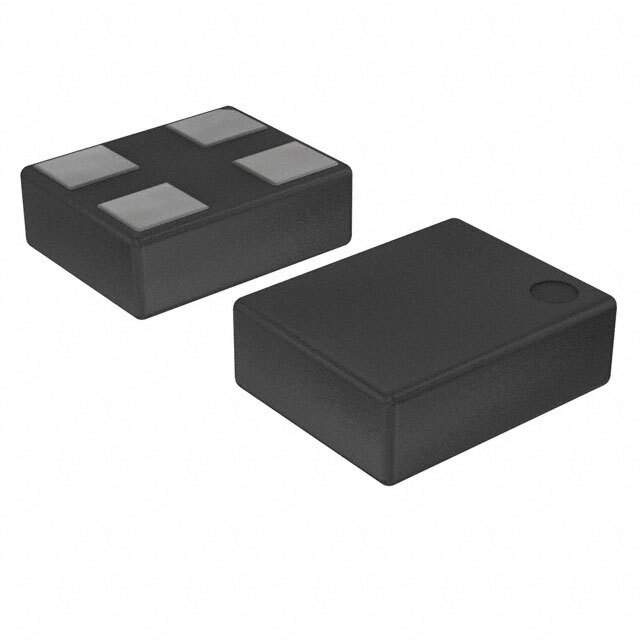

Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.89mm)
Current - Supply (Disable) (Max) 12 µA
Standard Package 1
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1344280-DSC6111JE2A-PROGRAMMABLE
Ultra Librarian 3D Model Ultra Librarian DSC6111JE2A-PROGRAMMABLE CAD Model

Description

Microchip Technology's DSC6111JE2A-PROGRAMMABLE: A Versatile Oscillator Solution

Microchip Technology's DSC6111JE2A-PROGRAMMABLE is a highly adaptable and precise MEMS (Micro-Electro-Mechanical Systems) oscillator designed to meet the needs of a wide array of applications. This programmable oscillator is part of Microchip's extensive portfolio of frequency control products, offering designers a flexible solution to address their timing requirements.

Key Features

  • Frequency Range: The DSC6111 series provides a broad frequency range that is programmable to meet the specific needs of various applications. This customization allows for precision tuning to achieve the optimal performance for your design.
  • Stability and Accuracy: With excellent frequency stability and low jitter performance, the DSC6111JE2A-PROGRAMMABLE ensures reliable operation even under varying environmental conditions, making it suitable for mission-critical applications.
  • Low Power Consumption: Designed with power-sensitive applications in mind, this oscillator maintains its performance while consuming minimal power, thereby extending the battery life of portable devices.
  • Compact Form Factor: The small package size is ideal for space-constrained applications, allowing for more efficient use of the PCB area without compromising on performance.
  • Programmability: Users can program the output frequency, allowing for a high degree of customization and flexibility. This feature simplifies inventory management and accelerates the product development cycle by reducing the need for multiple fixed-frequency oscillators.

Applications

The DSC6111JE2A-PROGRAMMABLE oscillator is suited for a wide range of applications, including:

  • Internet of Things (IoT) devices
  • Consumer electronics
  • Industrial automation and control systems
  • Wearable technology
  • Wireless communications
  • Medical devices

Microchip Technology's commitment to quality and performance is evident in the DSC6111JE2A-PROGRAMMABLE oscillator. With its programmability, stability, and low power consumption, this oscillator is an excellent choice for designers looking for a versatile timing solution that can adapt to their specific needs. Whether for mass production or prototyping, the DSC6111JE2A-PROGRAMMABLE offers a reliable and efficient solution for your timing requirements.
