Products specifications

Manufacturer Microchip Technology
Packaging Tube
Base Resonator MEMS
Type XO (Standard)
Programmable Type Blank (User Must Program)
Available Frequency Range 1MHz ~ 150MHz
Function Standby
Output CMOS
Supply Voltage (V) 1.8V ~ 3.3V
Frequency Stability (Total) ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Maximum) 12.2mA
Ratings AEC-Q100
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.035" (0.90mm)
Current - Supply (Disable) (Maximum) 15μA
Manufacturer Pack Quantity 110
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805853-DSC8001CI2
Ultra Librarian 3D Model Ultra Librarian DSC8001CI2 CAD Model

Description

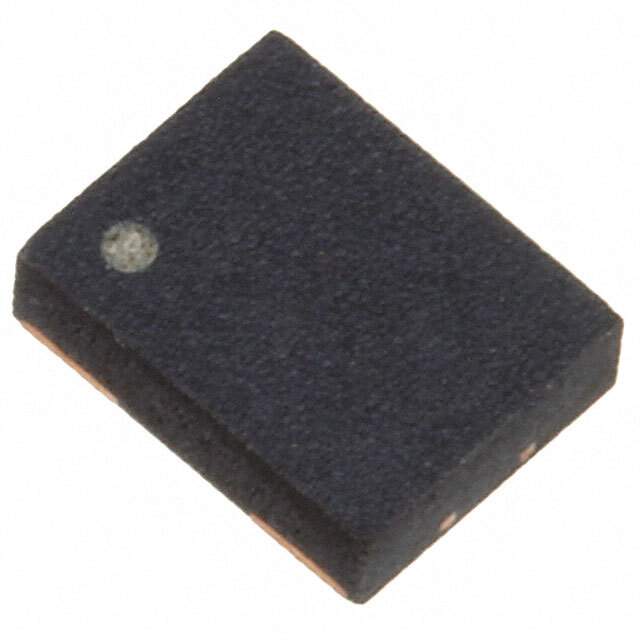

Microchip Technology DSC8001CI2

The DSC8001CI2 is a high-performance, low-power silicon MEMS oscillator from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This precision device is designed to be a drop-in replacement for traditional quartz crystal oscillators, offering enhanced stability, reliability, and flexibility for a wide range of applications.

Key Features:

  • Frequency Range: The DSC8001 series offers a wide frequency range, making it suitable for various applications, including consumer electronics, networking, and telecommunications.
  • Low Power Consumption: With a design focused on energy efficiency, this oscillator minimizes power consumption, thereby extending the battery life of portable devices.
  • High Stability: The DSC8001CI2 provides excellent frequency stability over a range of operating conditions, ensuring reliable performance even in challenging environments.
  • Small Footprint: The compact package size allows for easy integration into space-constrained designs without compromising on functionality.
  • Voltage Supply: It is designed to operate with a supply voltage that is compatible with most common logic levels, providing flexibility in system design.
  • Output Type: The oscillator provides a CMOS output, which is widely used and easily interfaced with various digital circuits.
  • Temperature Range: It is engineered to operate over an industrial temperature range, making it suitable for applications that may experience extreme temperature variations.

Applications:

The DSC8001CI2 is ideal for use in a multitude of electronic applications including but not limited to:

  • Wireless communication devices
  • Portable consumer electronics
  • Industrial control systems
  • Automotive electronics
  • Networking equipment
  • Internet of Things (IoT) devices

In summary, the DSC8001CI2 by Microchip Technology is a versatile, high-performance silicon oscillator that offers a reliable and efficient solution for designers looking to enhance their electronic systems. Its robust performance and compact size make it an excellent choice for a wide array of applications.
