Products specifications

Category Crystals, Oscillators, Resonators>Programmable Oscillators
Manufacturer Microchip Technology
Packaging Tube
Base Resonator MEMS
Type XO (Standard)
Programmable Type Blank (User Must Program)
Available Frequency Range 10 MHz ~ 170 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability (Total) ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Mounting Surface Mount
Case / Package 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Base Product Number DSC8121
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 576-4717
Standard Package 110
Win Source Part Number 1328178-DSC8121CI2
Ultra Librarian 3D Model Ultra Librarian DSC8121CI2 CAD Model

Description

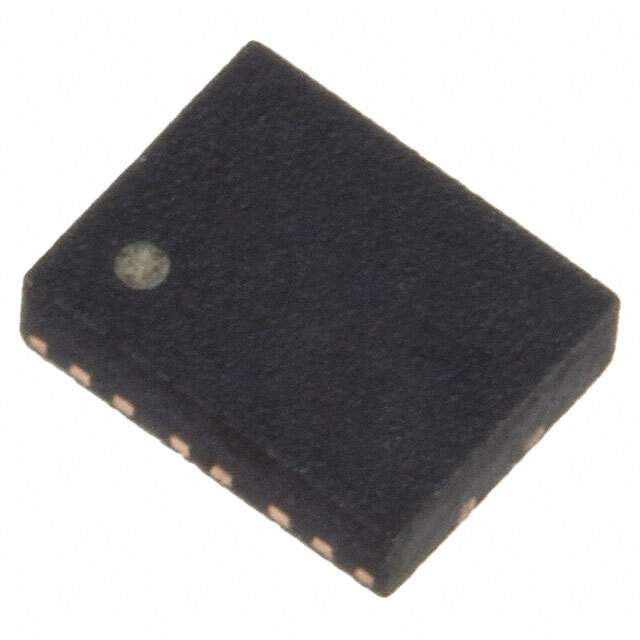

Microchip Technology's DSC8121CI2: A High-Performance Oscillator

The DSC8121CI2 is a MEMS (Micro-Electro-Mechanical Systems) oscillator from Microchip Technology, designed to deliver exceptional timing solutions for a wide array of electronic applications. This state-of-the-art component is part of Microchip's DSC8000 series, which is renowned for its reliability, precision, and versatility. The DSC8121CI2 stands out for its compact size, low power consumption, and high stability, making it an ideal choice for modern, space-constrained designs that require accurate timekeeping.

With an operating temperature range of -40°C to +85°C, the DSC8121CI2 ensures consistent performance across diverse environmental conditions. This feature is particularly important for industrial, automotive, and outdoor applications where temperature fluctuations are common. The component's robust design also offers excellent resistance to shock and vibration, further enhancing its reliability in physically demanding scenarios.

One of the notable specifications of the DSC8121CI2 is its frequency range. This oscillator can provide frequencies from 1 MHz to 150 MHz, catering to the needs of various high-speed digital electronics, such as microprocessors, communication devices, and storage systems. The precise frequency control is essential for maintaining system integrity and ensuring efficient operation of time-sensitive circuits.

The DSC8121CI2 oscillator is also characterized by its low jitter performance, which is crucial for applications that require high signal integrity, such as data converters, high-speed data transfers, and network equipment. Low jitter ensures minimal signal distortion, leading to clearer data transmission and reduced error rates.

Integration of the DSC8121CI2 into electronic systems is simplified thanks to its industry-standard footprint. The oscillator is available in a 6-pin ceramic package that is compatible with most PCB layouts, which minimizes the need for design changes and accelerates time-to-market for new products.

In summary, the DSC8121CI2 from Microchip Technology is a high-quality, versatile oscillator that provides designers with a reliable timing solution. Its combination of performance, durability, and ease of integration makes it an excellent choice for a broad range of applications where precision timing is paramount.
