Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Microchip Technology
Package Tape & Reel
Type Linear
Topology Flyback
Internal Switch(s) No
Number of Outputs 1
Voltage - Supply (Min) 8V
Voltage - Supply (Max) 60V
Frequency 200kHz
Dimming Analog, PWM
Applications Automotive, Lighting, Signage
Mounting Type Surface Mount

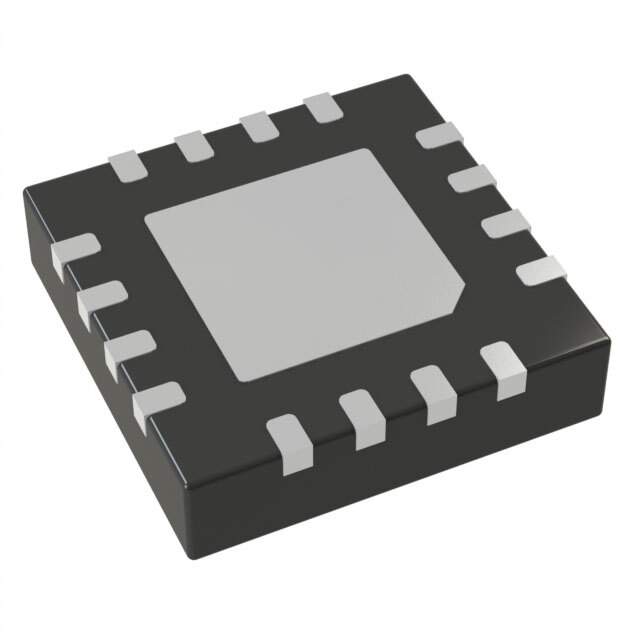

Package / Case 12-VQFN Exposed Pad
Supplier Device Package 12-QFN (4x4)
Base Product Number HV96001
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1342712-HV96001-E/NFA
Ultra Librarian 3D Model Ultra Librarian HV96001-E/NFA CAD Model

Description

The HV96001-E/NFA is a state-of-the-art, high-voltage, half-bridge gate driver IC designed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This product is specifically engineered to drive N-channel MOSFETs or IGBTs in a half-bridge configuration, making it an ideal choice for a wide range of power conversion applications.

With its advanced features and robust design, the HV96001-E/NFA is capable of driving high-side and low-side switches with excellent efficiency and precision. It is well-suited for high-performance applications that require reliable operation under harsh conditions, including industrial power supplies, motor drives, automotive systems, and more.

Key Features:

  • High-Voltage Capability: The device is designed to handle high voltages, which makes it suitable for applications that operate at elevated power levels.
  • Integrated Bootstrap Diode: The inclusion of an integrated bootstrap diode simplifies the circuit design and reduces external component count, enhancing reliability and reducing overall system cost.
  • Advanced Protection Features: The HV96001-E/NFA includes under-voltage lockout (UVLO), dead-time control, and over-temperature protection, ensuring safe operation and preventing damage to the IC and connected power devices.
  • High-Speed Operation: The device supports high-frequency switching, which is essential for efficient power conversion in modern electronic systems.
  • Flexible Supply Voltage: It operates over a wide range of supply voltages, accommodating various application requirements and simplifying power supply design.

The HV96001-E/NFA is available in a compact package that is optimized for thermal performance and space-saving on the PCB. Its exceptional quality and performance are backed by Microchip Technology's commitment to providing customers with products that meet the highest standards of reliability and longevity. For those looking to integrate a powerful and reliable gate driver into their power conversion systems, the HV96001-E/NFA offers a compelling solution.
