Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Microchip Technology
Series -
Package Tube
Product Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Voltage - Supply 4.5V ~ 18V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 1.5A, 1.5A
Input Type Inverting
Rise / Fall Time (Typ) 11.5ns, 10ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package 8-MSOP
Base Product Number MCP14A0153
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372537-MCP14A0153-E/MS
Ultra Librarian 3D Model Ultra Librarian MCP14A0153-E/MS CAD Model

Description

The MCP14A0153-E/MS is a high-performance, power MOSFET driver from Microchip Technology, designed to accommodate a wide range of applications that require efficient power management. This driver is capable of delivering peak output currents up to 1.5A, making it suitable for driving large capacitive loads with rapid switching times.

Key Features

  • High Peak Output Current: Capable of delivering up to 1.5A, which is ideal for driving power MOSFETs and IGBTs.
  • Wide Operating Voltage Range: The device operates from a 4.5V to 18V supply, providing flexibility in various power systems.
  • Fast Propagation Delays: Ensures quick response times with 35ns typical propagation delay, which is essential for high-frequency switching applications.
  • Low Shoot-Through/Cross-Conduction Prevention: Features matched rise and fall times to minimize the risk of shoot-through, enhancing the reliability of the power stage.
  • Robust Design: The MCP14A0153-E/MS is designed to be latch-up resistant, providing stable operation in adverse conditions.

Applications

This driver is versatile and can be used in a variety of applications, including:

  • DC/DC Converters
  • Motor Control Circuits
  • Power Supply Modules
  • Class D Switching Amplifiers
  • LED Lighting Systems

Package and Quality

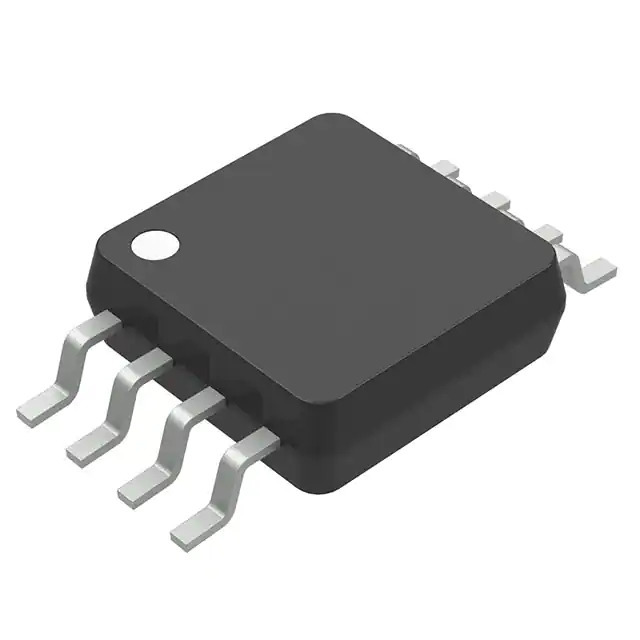

The MCP14A0153-E/MS comes in an 8-lead MSOP (Micro Small Outline Package) that is compact and suitable for space-constrained applications. Microchip Technology's commitment to quality ensures that this MOSFET driver is reliable and meets industry standards for performance and durability.

Conclusion

With its robust design, high output current capability, and fast switching performance, the MCP14A0153-E/MS from Microchip Technology stands out as an excellent choice for designers looking to improve the efficiency and reliability of their power management systems. Whether it's for consumer electronics, industrial automation, or automotive applications, this MOSFET driver is engineered to meet the demands of modern electronic devices.
