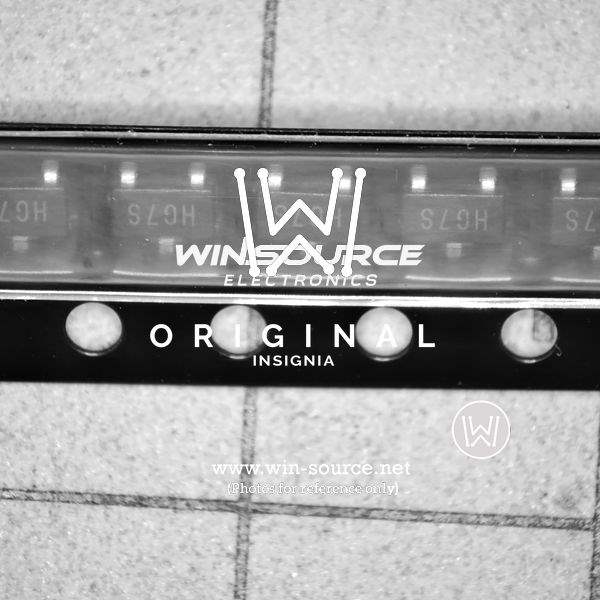

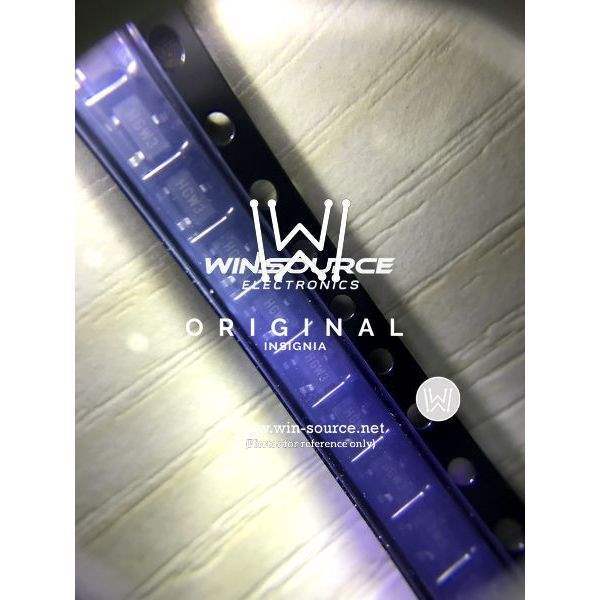

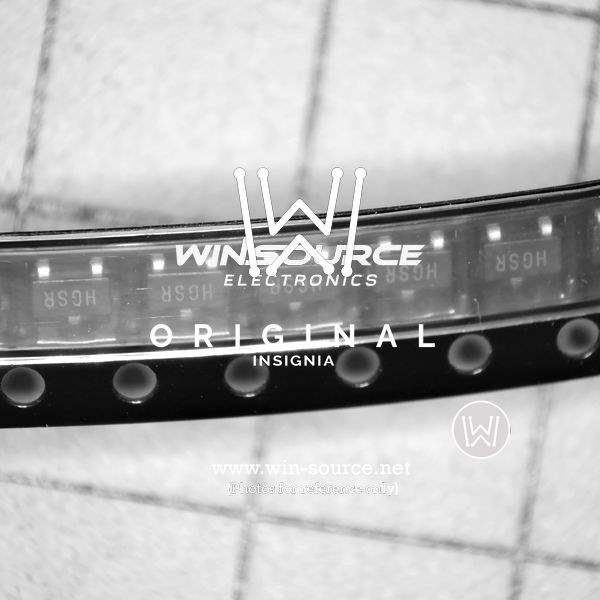

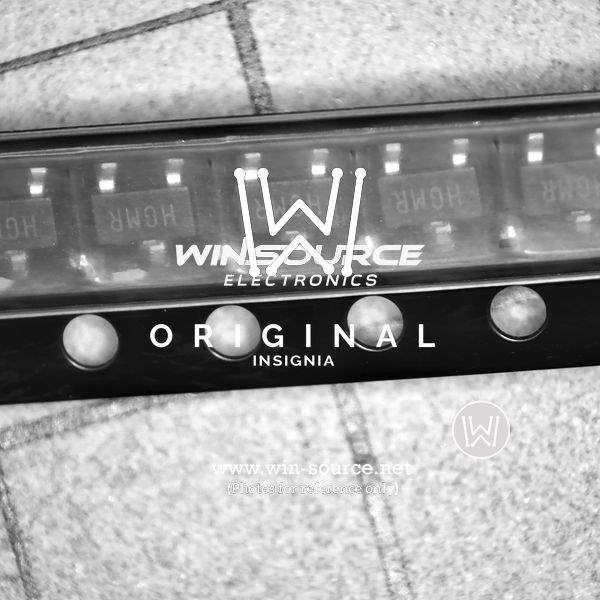

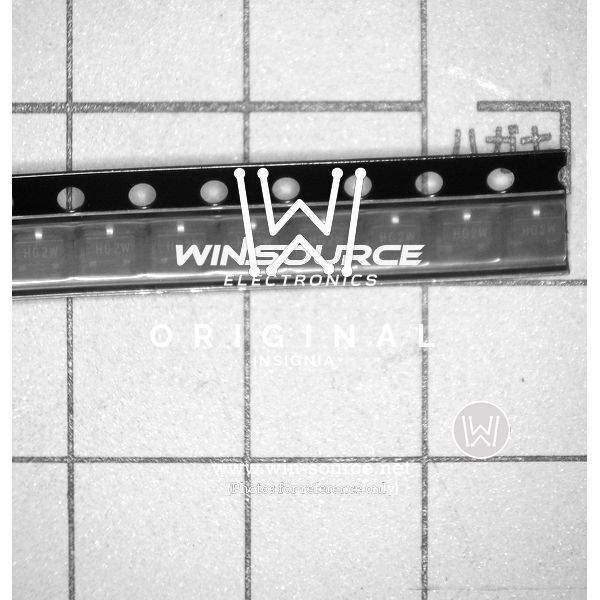

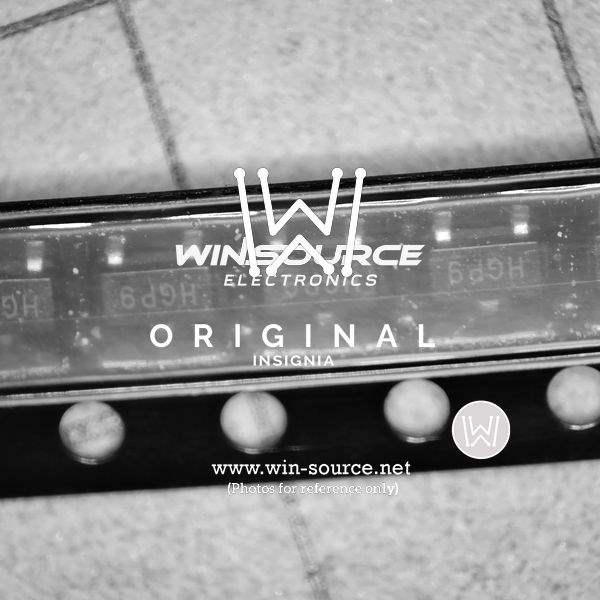

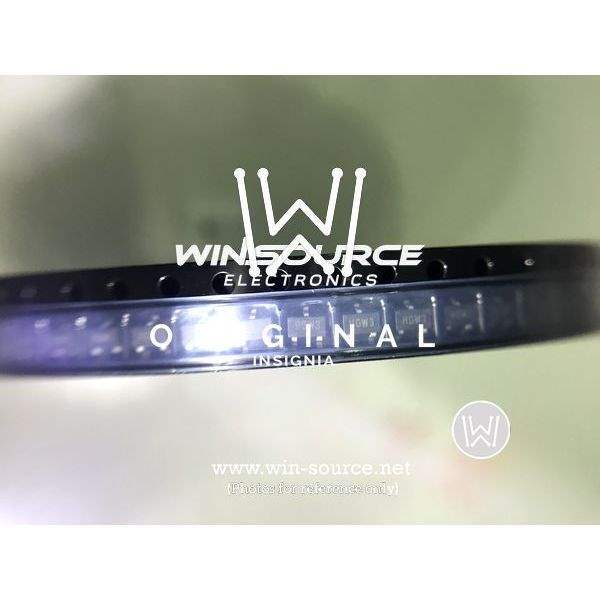

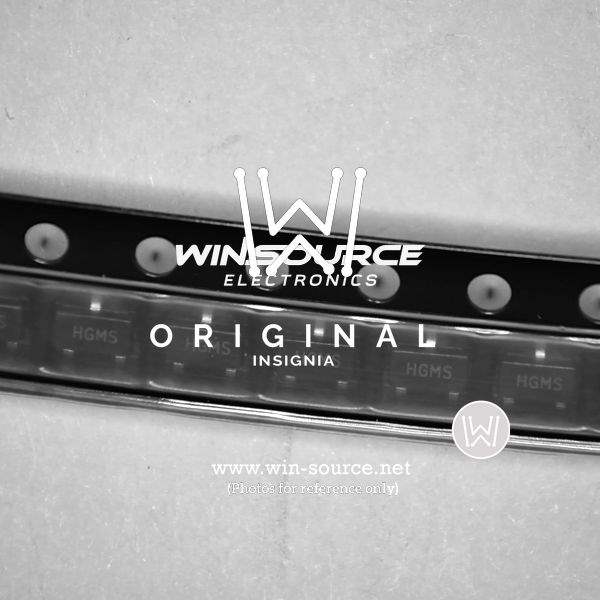

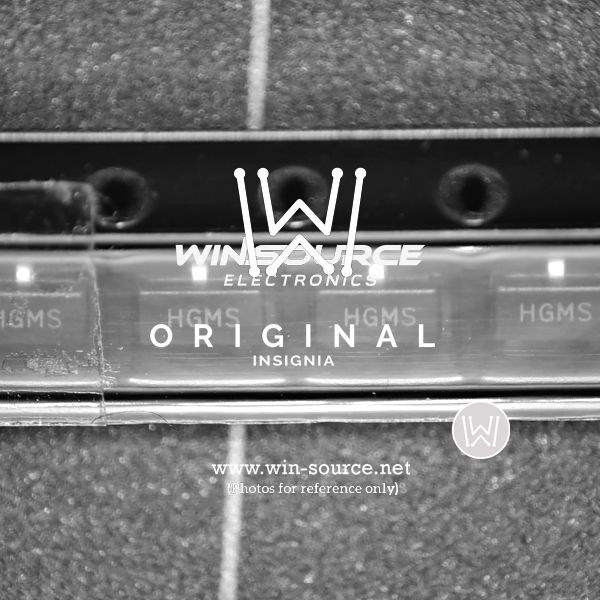

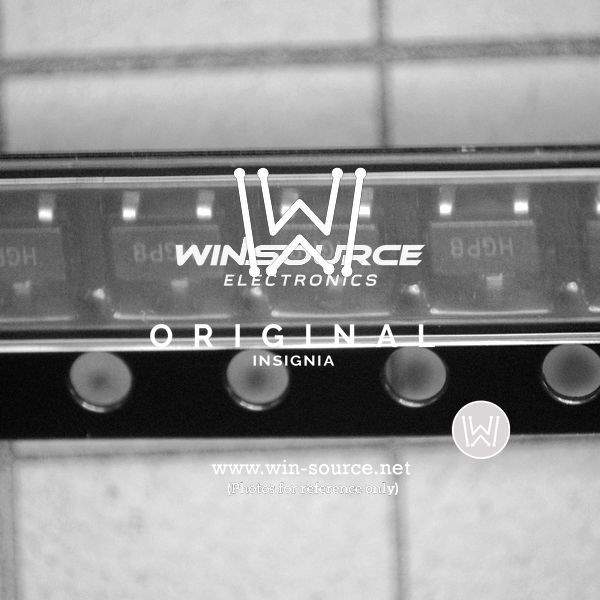

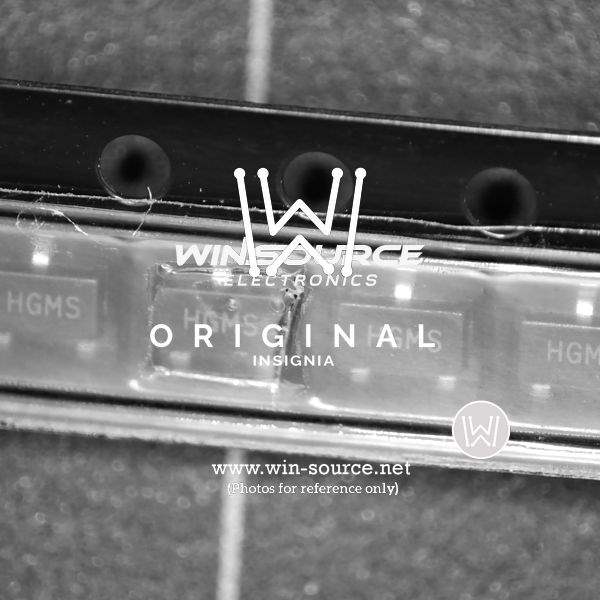

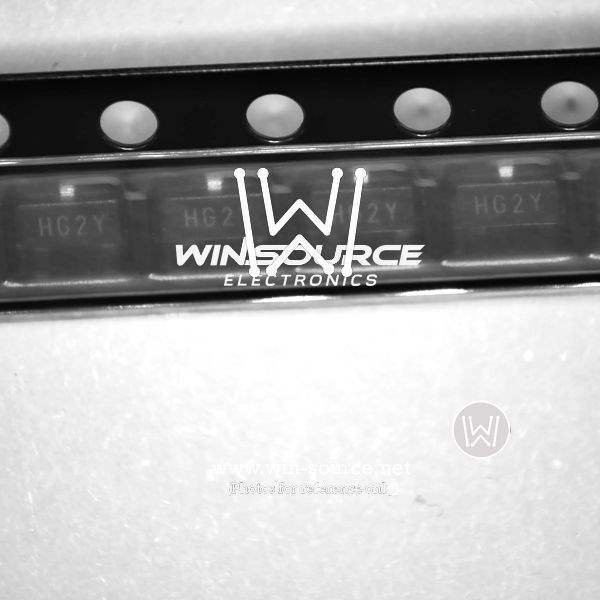

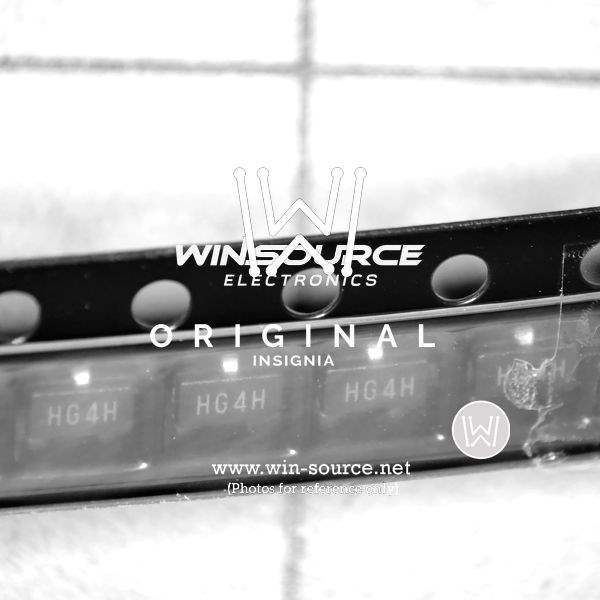

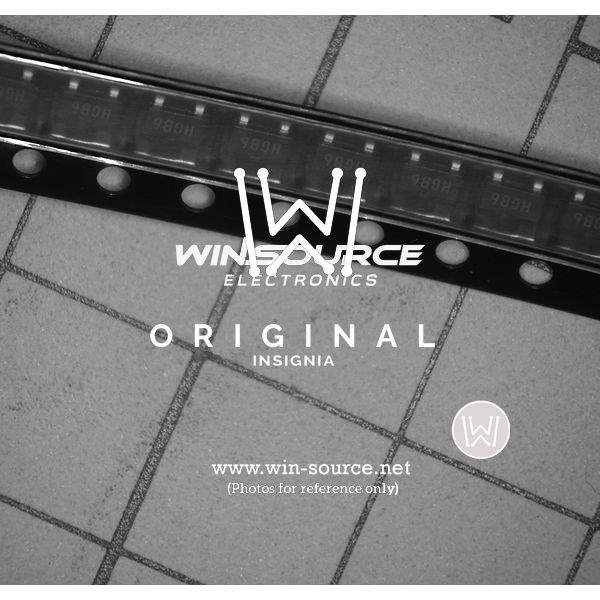

Microchip Technology MCP1702T-3302E/CB Voltage Regulator

The MCP1702T-3302E/CB from Microchip Technology is a highly reliable, low dropout voltage regulator designed for applications where power efficiency is paramount. This device offers a stable and precise output voltage of 3.3V, which makes it an ideal choice for low-voltage electronics, such as microcontrollers and analog devices that require a regulated power supply for optimal performance.

With an input voltage range of 2.7V to 13.2V, the MCP1702T-3302E/CB provides versatility in various power supply configurations. Its low dropout voltage, typically 178mV at 250mA load, ensures that the output voltage remains stable even when the input voltage is very close to the output voltage, which is particularly advantageous in battery-operated devices where maximizing battery life is critical.

The MCP1702T-3302E/CB features a low quiescent current of only 2 µA, which significantly reduces power consumption when the device is in idle mode. This characteristic makes it suitable for portable and battery-powered applications where extending the operational lifespan is necessary. Additionally, the regulator is designed with overcurrent protection and thermal shutdown features, enhancing the safety and reliability of the device under excessive load conditions.

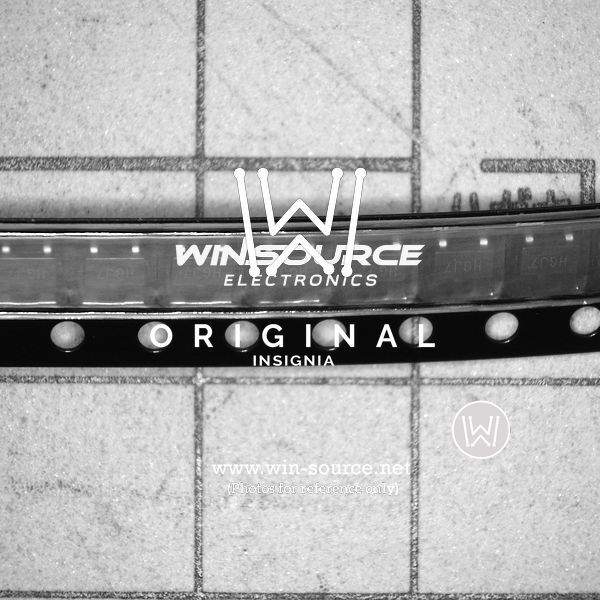

Housed in a compact SOT-23 package, the MCP1702T-3302E/CB is designed for space-constrained applications. It is also characterized by a stable output with only a small ceramic output capacitor of 1 µF, which simplifies the design and reduces the overall bill of materials for the end product.

With its excellent line and load regulation capabilities, the MCP1702T-3302E/CB is a perfect choice for a wide range of applications, including but not limited to consumer electronics, portable devices, and embedded systems. Its low dropout voltage, low quiescent current, and robust protection features make it a reliable and efficient solution for maintaining a consistent power supply in sensitive electronic circuits.

Overall, the Microchip MCP1702T-3302E/CB is a testament to Microchip Technology's commitment to providing high-quality, energy-efficient power management solutions that meet the evolving needs of modern electronic devices.
