Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features I/O Expander 8 SPI 10 16-QFN (3x3)
Manufacturer Microchip Technology
Package Tube
Number of I/O 8
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount

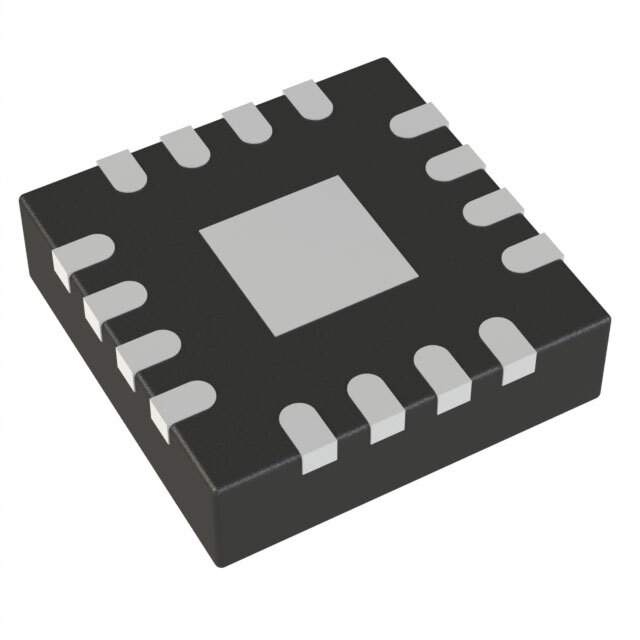

Package 16-VFQFN Exposed Pad
Case / Package 16-QFN (3x3)
Family Name MCP23S09
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 120
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926634-MCP23S09-E/MG
Ultra Librarian 3D Model Ultra Librarian MCP23S09-E/MG CAD Model

Description

Microchip Technology MCP23S09-E/MG

The MCP23S09-E/MG from Microchip Technology is a versatile, 8-bit I/O expander with serial interface that offers an easy way to expand the available I/O on a microcontroller or microprocessor. This compact and efficient device is housed in a surface-mountable TSSOP-16 package, making it suitable for space-constrained applications.

With the MCP23S09-E/MG, you can add more inputs or outputs to your system through a simple SPI (Serial Peripheral Interface) connection. This interface is widely used and allows for high-speed communication with a host controller. The device operates over a broad voltage range (2.7V to 5.5V), ensuring compatibility with both 3.3V and 5V logic levels, which makes it a flexible choice for various power environments.

The MCP23S09-E/MG features eight I/O pins that can be individually configured as either an input or an output. Each I/O pin is equipped with internal pull-up resistors, which can be enabled or disabled according to the requirements of your design. The device also provides interrupt-on-change functionality, where an interrupt is triggered on the host microcontroller when an input state changes, enhancing the efficiency of your system by eliminating the need for continuous polling of the input status.

Additional features include high-current sink/source capability for direct LED drive, input polarity inversion for adapting to specific applications, and hardware address pins for the use of multiple devices on the same bus, allowing for the expansion of up to 64 I/Os without requiring additional SPI select lines.

Whether you're working on a small-scale project or a large industrial system, the MCP23S09-E/MG provides a reliable and cost-effective solution for I/O expansion. It is particularly useful in applications such as automotive systems, home automation, industrial controls, and any other system requiring additional I/O capabilities without the need for a larger or more expensive microcontroller.

Overall, the MCP23S09-E/MG is an excellent choice for designers looking to enhance their system's I/O capabilities with a minimal footprint and straightforward interface.
