Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Reel
The number of I/O 16
Interface SPI
Interrupt Output Yes
Features POR
Output Type Push-Pull
Current - Output Source/Sink 25mA
Clock Frequency 10MHz
Supply Voltage (V) 1.8V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 28-SOIC
Supplier Device Package 28-SOIC
Family Part Number MCP23S17
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1221020-MCP23S17T-E/SO
Manufacturer Homepage www.microchip.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCP23S17T-E/SO CAD Model

Description

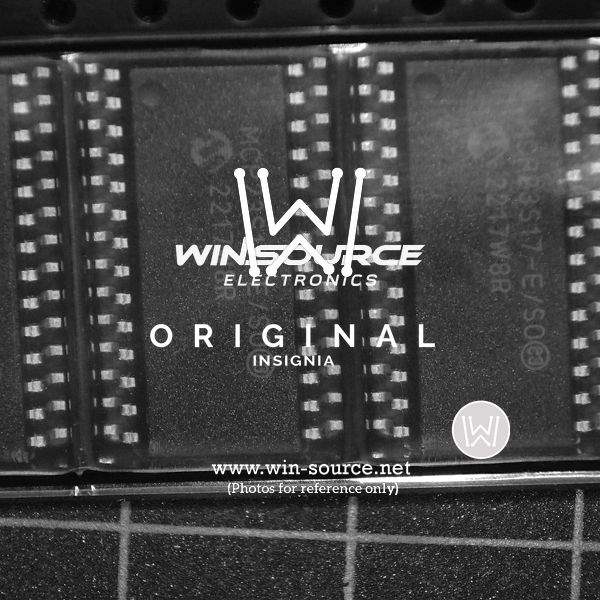

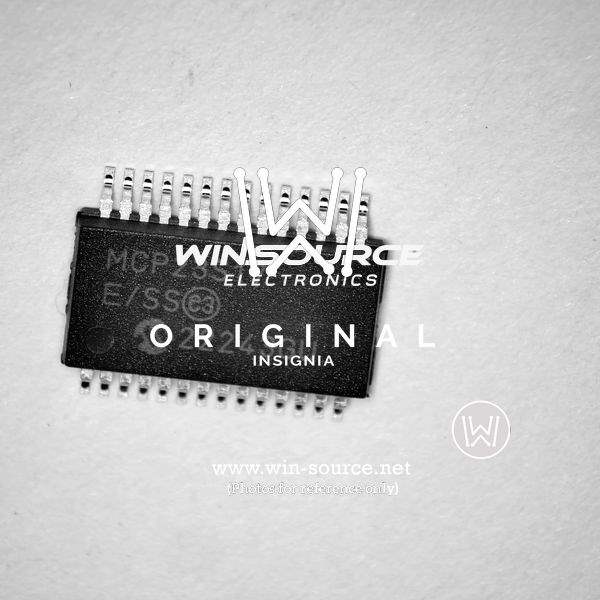

Microchip Technology MCP23S17T-E/SO

The MCP23S17T-E/SO is a robust, versatile 16-bit I/O expander from Microchip Technology, designed to provide additional input/output capability to an embedded system through a Serial Peripheral Interface (SPI). This particular model is housed in a small-outline (SO) package, making it suitable for space-constrained applications.

Key Features:

  • Interface: The device operates via an SPI interface, ensuring high-speed communication with microcontrollers or processors, with clock speeds up to 10 MHz.
  • I/O Expansion: It offers 16 additional general-purpose I/O pins, which can be individually configured as input or output, providing significant expansion for systems with limited GPIOs.
  • Interrupt Output: The MCP23S17T-E/SO includes configurable interrupt output pins which can be triggered by changes on the input pins, allowing for efficient event-driven programming.
  • Addressing: Up to eight devices can share the same SPI bus through hardware address pins, allowing for a total of 128 additional I/Os.
  • Operating Voltage: The device supports a wide range of supply voltages from 1.8V to 5.5V, making it compatible with most logic levels and suitable for both 5V and 3.3V systems.
  • High-Temperature Operation: With an operational temperature range of -40°C to +125°C, it is designed to perform reliably in extreme environments.

Applications:

The MCP23S17T-E/SO is ideal for a variety of applications where additional I/Os are needed. It is commonly used in:

  • Industrial control systems
  • Home automation systems
  • Robotics and embedded systems
  • PLC (Programmable Logic Controllers)
  • Server and telecom I/O expansion

Quality and Reliability:

Microchip Technology is known for its high-quality products, and the MCP23S17T-E/SO is no exception. It is built to meet stringent quality standards, ensuring reliable performance and longevity in a variety of demanding applications.
