Products specifications

Category Integrated Circuits (ICs) - Data Acquisition - Digital to Analog Converters (DAC)
Mfr Microchip Technology
Series MCP
Package Tube
Product Status Active
Number of Bits 8
Number of D/A Converters 8
Settling Time 7.8µs (Typ)
Output Type Voltage - Buffered, Voltage - Unbuffered
Differential Output No
Data Interface I²C
Reference Type External
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
INL/DNL (LSB) ±0.1, ±0.0125LSB
Architecture -
Temperature Range - Operating -40°C ~ 125°C
Package / Case 20-VQFN Exposed Pad
Supplier Device Package 20-VQFN (5x5)
Mounting Type Surface Mount
Base Product Number MCP47FEB08
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366559-MCP47FEB08-E/MQ
Ultra Librarian 3D Model Ultra Librarian MCP47FEB08-E/MQ CAD Model

Description

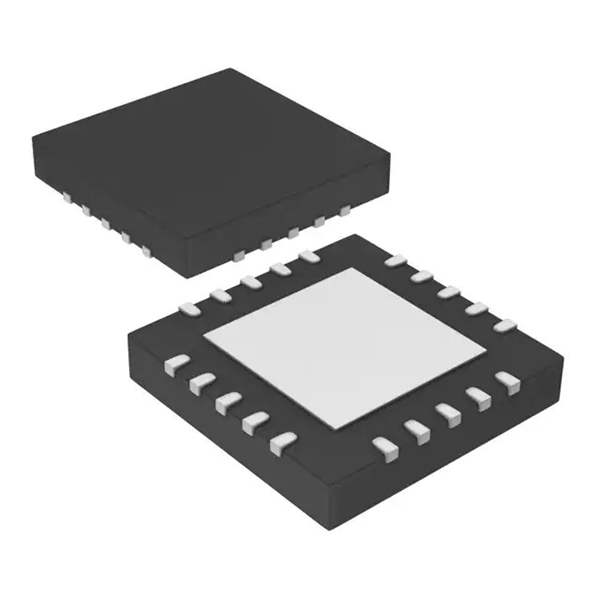

Microchip Technology MCP47FEB08-E/MQ Digital-to-Analog Converter

The MCP47FEB08-E/MQ is a highly integrated digital-to-analog converter (DAC) solution offered by Microchip Technology, a leader in smart, connected, and secure embedded control solutions. This particular model is part of the MCP47FEBxx series that is designed to provide a balance of performance and cost, making it a perfect fit for a wide range of applications in the consumer, automotive, and industrial markets.

Key Features

  • Resolution: The MCP47FEB08-E/MQ features an 8-bit resolution, which provides a fine granularity of the analog output, allowing precise control over the signals generated.
  • Channels: It comes with a dual-channel configuration, enabling the simultaneous output of two analog signals from a single device.
  • Interface: This DAC incorporates an I2C-compatible serial interface, ensuring easy integration with most microcontrollers and processors, as well as facilitating a simple communication protocol.
  • Voltage Reference: The device includes an internal voltage reference with an external override capability, offering flexibility in setting the full-scale output voltage.
  • Power Efficiency: Designed with power efficiency in mind, the MCP47FEB08-E/MQ operates with a single supply voltage of 2.7V to 5.5V, making it suitable for battery-powered and portable applications.

Applications

The MCP47FEB08-E/MQ is versatile in its applications due to its performance characteristics. It is well-suited for:

  • Portable instrumentation
  • Data acquisition systems
  • Industrial process control
  • Analog level adjustment systems
  • Automotive systems

Package and Quality

The device is offered in a 10-lead MSOP (Microchip Package) which is known for its small footprint and reliability. The MCP47FEB08-E/MQ is built to meet high-quality standards, ensuring robust performance in a wide range of environmental conditions.

Overall, the MCP47FEB08-E/MQ from Microchip Technology is an excellent choice for designers looking for a cost-effective yet powerful DAC solution. Its combination of features, including dual channels, internal voltage reference, and I2C interface, make it a versatile and indispensable component in the modern electronics landscape.
