MIC29152WU-TR Voltage Regulator by Microchip Technology

The MIC29152WU-TR from Microchip Technology is a high-current, high-accuracy, low-dropout voltage regulator, designed to provide a stable power supply for a wide range of applications. This regulator is capable of delivering up to 1.5A of output current while maintaining a low voltage drop, ensuring efficient operation even under heavy load conditions.

Key Features

• High Output Current: Capable of delivering up to 1.5A, making it suitable for high-power applications.
• Low Dropout: Offers a low dropout voltage, which enhances efficiency by minimizing the difference between the input and output voltages.
• Adjustable Output: The output voltage can be adjusted from 1.25V to 26V using external resistors, providing flexibility for various design requirements.
• Stable with Low-ESR Output Capacitors: Stable with ceramic capacitors, which can be advantageous in applications where space is at a premium and cost is a concern.
• Thermal and Overcurrent Protection: Features include built-in thermal shutdown and current-limiting capabilities to protect the device and the load from damage due to overheating or excessive current.
• Wide Operating Temperature Range: Operates over an industrial temperature range, making it suitable for harsh environments.

Applications

The MIC29152WU-TR is versatile and can be used in various applications, including:

• High-efficiency linear power supplies
• Battery-powered devices
• Post regulators for switching supplies
• Low-voltage logic supplies
• Computer add-on cards

Package and Availability

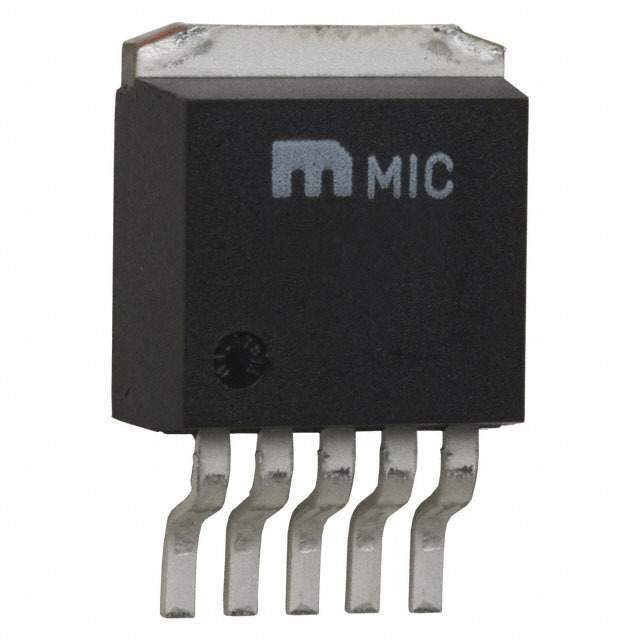

The device comes in a TO-263 (D2PAK) surface-mount package, which is suitable for automated assembly processes and helps in saving board space. The part number suffix 'TR' indicates that the product is provided in tape and reel packaging, which is ideal for high-volume production environments.

Microchip Technology's commitment to quality and long-term availability makes the MIC29152WU-TR a reliable choice for designers looking to create robust and efficient power management systems.
