Products specifications

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 6V
Nominal Output Voltage (Min/Fixed) 1.24V
Maximum Output Voltage 5.5V
Output Current 3A
Operating Supply Current 50mA
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.24 V to 5.5 V
Voltage - Dropout (Typical) 0.3V @ 3A
Mounting SMD (SMT)
Case / Package TO-263-5
Win Source Part Number 023281-MIC37302WU
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MIC37302WU CAD Model

Description

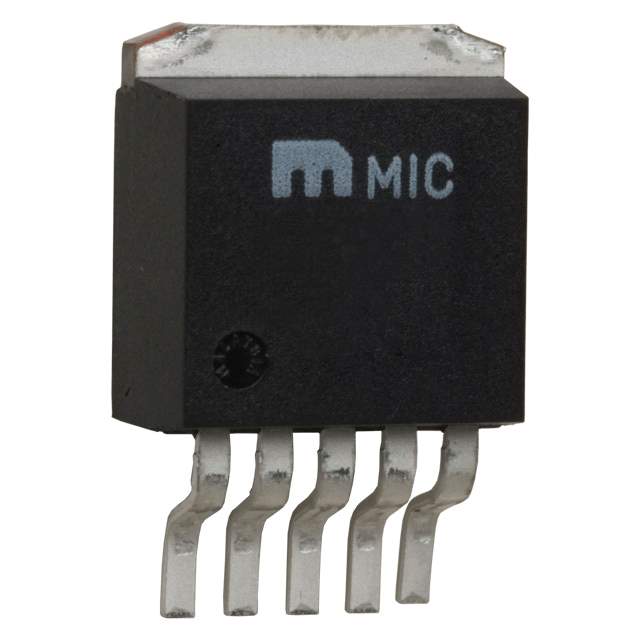

Microchip Technology MIC37302WU LDO Voltage Regulator

The MIC37302WU is a high-performance, low-dropout voltage regulator (LDO) from Microchip Technology, designed to deliver a stable and reliable power supply for a wide range of applications. With its exceptional accuracy, low noise, and robust thermal performance, the MIC37302WU is an ideal choice for sensitive electronic devices that require a consistent voltage to operate efficiently.

Key Features:

  • Output Voltage: The MIC37302WU provides an adjustable output voltage that can be set from 1.24V to 3.8V with the use of external resistors, allowing for versatile application across different circuits.
  • High Current Capability: It can deliver up to 3A of continuous output current, making it suitable for powering a variety of high-power devices.
  • Low Dropout: The LDO features a low dropout voltage, ensuring efficient operation even when the input voltage is very close to the output voltage, which is particularly useful for battery-powered applications.
  • Thermal Protection: The MIC37302WU is equipped with thermal shutdown protection that safeguards the device and the system from overheating by turning off the regulator when the internal junction temperature exceeds a preset limit.
  • Current Limiting: It also includes current limiting to protect both the regulator and the load from damage due to overcurrent conditions.
  • Fast Transient Response: The device offers a fast transient response, which is critical for maintaining voltage stability during rapid changes in load.
  • Package: The regulator is available in a 5-lead TO-263 (D2PAK) package, which is designed for optimal power dissipation and space-saving on PCBs.

Applications:

The versatility of the MIC37302WU LDO voltage regulator makes it suitable for a variety of applications, including:

  • High-end consumer electronics
  • Computer peripherals and servers
  • Telecommunications
  • Networking equipment
  • Industrial applications

With its precision voltage regulation, high current capability, and robust protection features, the MIC37302WU from Microchip Technology is a reliable power management solution that ensures the optimal performance of electronic systems.
