Product Overview: MIC5332-SSYMT-TR from Microchip Technology

The MIC5332-SSYMT-TR is a high-performance, dual 500mA LDO (Low Dropout Regulator) from Microchip Technology, designed to provide a stable and reliable power supply for a wide range of applications. This regulator is especially suitable for portable devices due to its low quiescent current, small footprint, and high power supply rejection ratio (PSRR).

Key Features

• Output Voltage: The MIC5332 provides two independent output voltages that can be adjusted from 1.0V to 3.6V via external resistors, making it highly versatile for different circuit requirements.
• High Output Current: Each output can deliver up to 500mA, which is sufficient for powering core components in complex systems.
• Low Dropout: The low dropout voltage allows the regulator to continue delivering a regulated output even when the input-to-output voltage differential is minimal.
• High PSRR: With a high power supply rejection ratio, the MIC5332 ensures stable output despite variations in the input voltage, which is critical for sensitive electronic devices.
• Thermal Shutdown: To protect against overheating, the MIC5332 includes a thermal shutdown feature that turns off the regulator if the internal temperature exceeds safe limits.
• Current Limit Protection: Built-in current limit protection prevents damage to the regulator and the downstream components in the event of an output overload or short circuit.
• Low Quiescent Current: The device's low quiescent current helps to maximize battery life in portable applications.

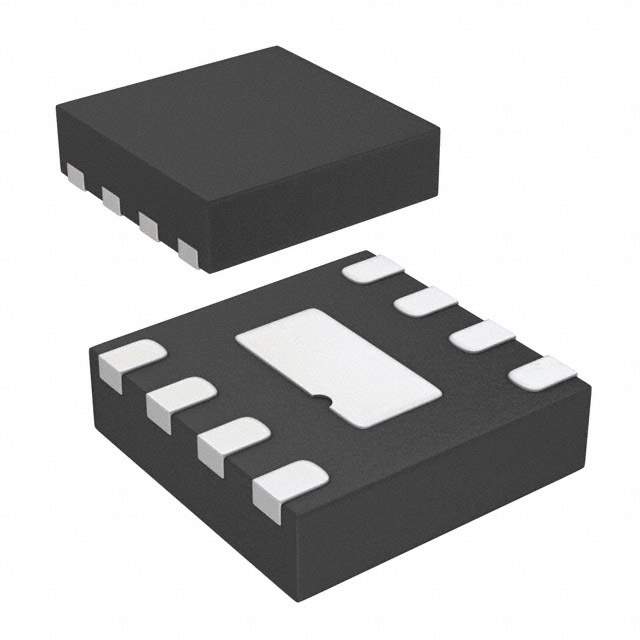

• Small Package: The MIC5332 is available in a small 10-pin 2x2mm MLF® package, which is ideal for space-constrained applications.

Applications

The MIC5332-SSYMT-TR is designed to support a broad range of applications, including but not limited to:

• Portable electronics such as smartphones, tablets, and cameras
• Wireless peripherals like Bluetooth headsets and GPS receivers
• Medical devices requiring low noise and stable power supply
• Battery-powered equipment and energy-sensitive systems

As a product of Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions, the MIC5332-SSYMT-TR stands out for its reliability and performance, making it an excellent choice for designers looking to optimize power management in their next project.
