Products specifications

Categories RF/IF and RFID
Estimated Pruduction Lead Time 51 Weeks
Features series RF Receiver ISM 433.92MHz -112dBm 20kbps On-Board, Trace 16-QSOP
Manufacturer Microchip Technology
Package Tube
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount

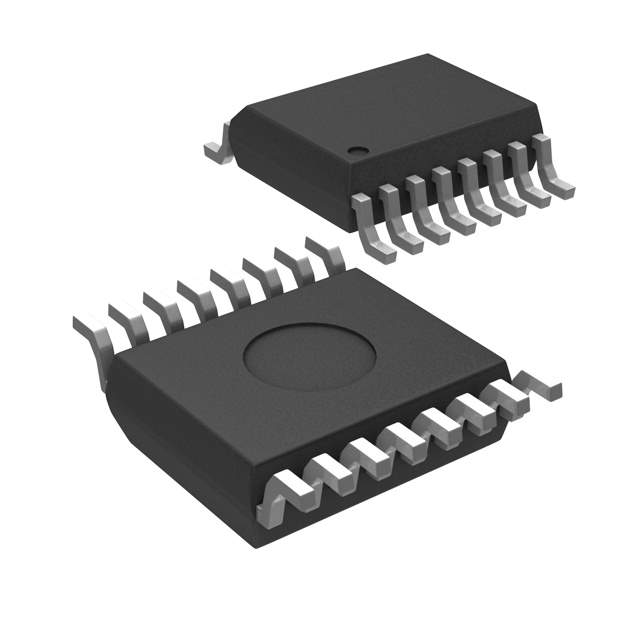

Package 16-SSOP (0.154", 3.90mm Width)
Case / Package 16-QSOP
Family Name MICRF230
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 98
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844080-MICRF230YQS
Ultra Librarian 3D Model Ultra Librarian MICRF230YQS CAD Model

Description

Introducing the MICRF230YQS from Microchip Technology

The MICRF230YQS by Microchip Technology is a highly integrated QwikRadio® UHF ASK/FSK transmitter designed to provide a sophisticated yet straightforward solution for wireless communication applications. Operating in the 400MHz to 450MHz frequency range, this versatile transmitter is ideal for a wide range of applications, including remote control systems, security and alarm systems, telemetry, and wireless sensor networks.

With its advanced features and low-power consumption, the MICRF230YQS is engineered to meet the demands of modern wireless systems. The device supports both Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK) modulation schemes, allowing for flexibility in the design and optimization of communication protocols for robustness and energy efficiency.

The MICRF230YQS is housed in a compact 16-pin QSOP package, making it suitable for space-constrained applications. Its design is optimized for low power consumption, which is critical for battery-operated devices, ensuring long-lasting performance and reliability. The transmitter is capable of output power up to +10dBm, providing a strong signal for clear communication over distances typical of consumer and industrial applications.

Key features of the MICRF230YQS include:

  • Frequency range: 400MHz to 450MHz
  • Modulation: ASK and FSK
  • Output power: Up to +10dBm
  • Supply voltage: 2.1V to 3.6V
  • Low current consumption for extended battery life
  • Integrated features such as a power amplifier, voltage regulator, and frequency synthesizer
  • Temperature range: -40°C to +125°C
  • Package: 16-pin QSOP

Developers will appreciate the ease of use provided by the MICRF230YQS, as it requires minimal external components to create a functional transmitter. This simplifies the design process and accelerates time-to-market for products that require reliable wireless communication capabilities.

Whether you are developing a remote keyless entry system, a wireless sensor network, or any other application that requires efficient and reliable wireless communication, the MICRF230YQS from Microchip Technology offers a compelling solution that balances performance with ease of integration.

For more information on the MICRF230YQS and how it can enhance your wireless communication projects, visit the Microchip Technology website or contact their support team for technical assistance.
