Products specifications

Win Source Part Number WS1202259-MSC035SMA070B
Manufacturer Microchip Technology
Category Discrete Semiconductor Products- Transistors -FETs, MOSFETs- Single FETs, MOSFETs
Package Tube
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 700 V
Operating Temperature -55°C ~ 175°C (TJ)

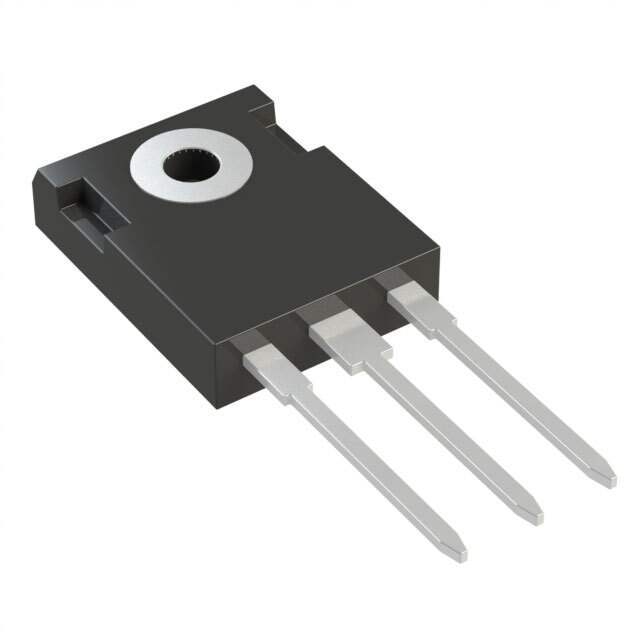

Supplier Device Package TO-247-3
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian MSC035SMA070B CAD Model

Description

Product Overview: MSC035SMA070B - Microchip Technology

The MSC035SMA070B is a high-performance, silicon carbide (SiC) MOSFET developed by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This advanced semiconductor device is designed to meet the rigorous demands of power electronics applications, providing improved efficiency, faster switching, and higher temperature operation compared to traditional silicon-based MOSFETs.

Key Features:

  • High Efficiency: The MSC035SMA070B features a low on-resistance (R<sub>DS(on)) that minimizes power losses, making it ideal for high-efficiency power conversion systems.
  • Fast Switching: With its fast switching capabilities, this SiC MOSFET enables higher switching frequencies, which can lead to smaller and lighter system designs by allowing for the use of smaller passive components.
  • High-Temperature Operation: Silicon carbide technology allows for stable operation at higher temperatures, extending the potential application range and improving reliability in harsh environments.
  • Robustness: The device offers excellent ruggedness and is designed to withstand harsh electrical and thermal conditions, making it suitable for demanding applications.
  • Integrated Protection: The MSC035SMA070B includes built-in protection features, ensuring safe operation and longevity of the device.

Applications:

This SiC MOSFET is versatile and can be used in a variety of power applications, including but not limited to:

  • Electric vehicle (EV) charging stations
  • Renewable energy systems (solar inverters, wind turbines)
  • Power supplies for data centers and telecommunications
  • Industrial motor drives and high-voltage power converters

The MSC035SMA070B from Microchip Technology represents a significant step forward in power semiconductor technology, offering enhanced performance and reliability for a wide range of power applications. Its superior characteristics make it a go-to choice for engineers and designers looking to push the boundaries of efficiency, power density, and thermal management.
