Microchip Technology's PIC12F1501-E/MC Microcontroller
The PIC12F1501-E/MC is a high-performance, 8-bit microcontroller designed by Microchip Technology, tailored for a wide range of applications that require a compact and power-efficient solution. This microcontroller is part of Microchip's renowned PIC family, which is celebrated for its ease of use, versatility, and reliability in embedded systems.
Key Features:
- Core: The device features a PIC12 core with a 16 MHz internal oscillator, providing a robust platform for executing instructions efficiently and swiftly, with a typical execution speed of 62.5 ns.
- Memory: It is equipped with 1.75 KB of flash memory and 64 bytes of EEPROM, ensuring ample space for application code and data storage. Additionally, there is 128 bytes of RAM for temporary data storage during operation.
- I/O Pins: The microcontroller offers 6 I/O pins which are highly versatile and can be configured with various peripherals according to the needs of the application.
- ADC: An integrated 10-bit Analog-to-Digital Converter (ADC) with up to four channels allows the device to interface with analog sensors and convert their signals for digital processing.
- Communication: For communication purposes, the PIC12F1501-E/MC supports I²C, SPI, and UART protocols, enabling it to connect with other microcontrollers, sensors, and peripheral devices.
- Timers: It features three timers, including a 16-bit timer, which are essential for time-related operations such as pulse generation, measurement, and timekeeping.
- Power Management: The microcontroller is designed for low-power consumption with several power-saving modes, making it ideal for battery-operated and power-sensitive applications.
Applications:
The PIC12F1501-E/MC is suitable for a diverse range of applications, such as:
- Consumer Electronics
- Automotive Systems
- Industrial Control
- Medical Devices
- Internet of Things (IoT) Devices
Package and Temperature Range:

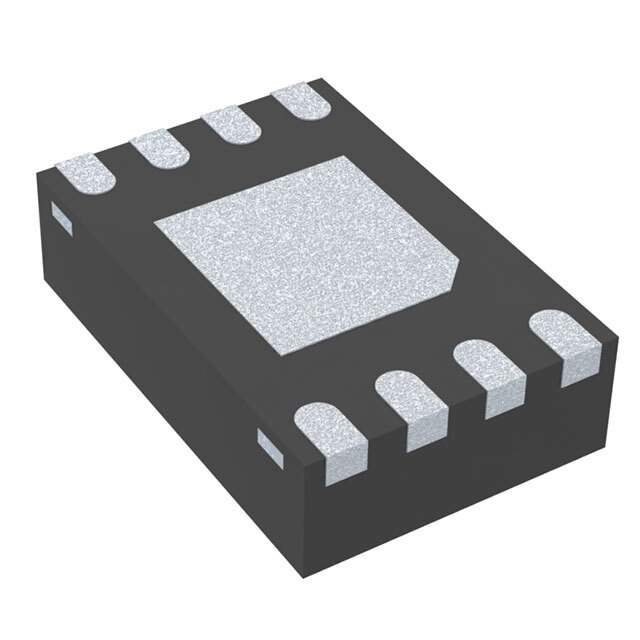

This microcontroller comes in a compact 8-pin UDFN package and operates within an extended temperature range, making it a reliable choice for both commercial and industrial environments.
With its combination of performance, memory, and peripherals, the PIC12F1501-E/MC from Microchip Technology stands out as an excellent choice for designers looking to optimize their embedded systems while maintaining a small footprint.
