Products specifications

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series PIC® 16F
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity -
Peripherals Brown-out Detect/Reset, POR, WDT
Number of I/O 17
Program Memory Size 1.5KB (1K x 12)
Program Memory Type FLASH
EEPROM Size 64 x 8
RAM Size 68 x 8
Voltage - Supply (Vcc/Vdd) 2V ~ 5.5V
Data Converters A/D 8x8b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Base Product Number PIC16F527
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1355743-PIC16F527-E/SO
Ultra Librarian 3D Model Ultra Librarian PIC16F527-E/SO CAD Model

Description

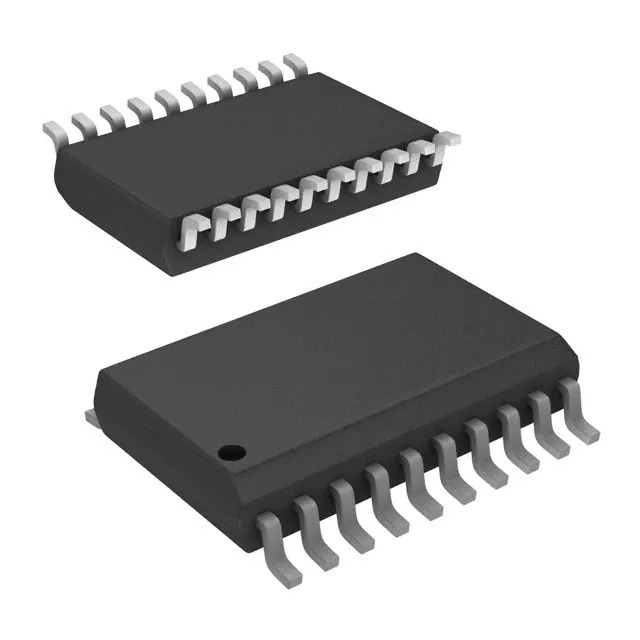

Microchip Technology PIC16F527-E/SO Microcontroller

The PIC16F527-E/SO from Microchip Technology is a versatile and efficient 8-bit microcontroller that combines intelligent analog and digital peripherals. This microcontroller is part of the renowned PIC16 family, which is well-suited for low-power and cost-sensitive applications. The PIC16F527-E/SO comes in a convenient SOIC (Small Outline Integrated Circuit) package, making it ideal for space-constrained applications.

With a wide operating voltage range of 2.0V to 5.5V, this microcontroller is designed to be flexible and adaptable to various power requirements, which is particularly beneficial for battery-operated devices. The PIC16F527-E/SO offers a rich set of features including:

  • Integrated EEPROM: It comes with 128 bytes of data EEPROM, which provides a convenient non-volatile storage option for data that must be preserved during power cycles.
  • High-Performance RISC CPU: The device boasts a Reduced Instruction Set Computer (RISC) architecture that enables the execution of most instructions in a single cycle, improving the overall efficiency of the microcontroller.
  • Flexible Oscillator Structure: The microcontroller supports a range of oscillator options, including an internal oscillator block that significantly reduces the need for external components.
  • Enhanced Peripheral Features: The PIC16F527-E/SO includes two analog comparators and a 6-channel 8-bit Analog-to-Digital Converter (ADC), providing enhanced control and measurement capabilities for connected sensors and actuators.
  • Robust Programming Features: The microcontroller supports In-Circuit Serial Programming (ICSP) for easy programming and reprogramming of the device, even after it has been placed in a circuit.

Furthermore, the device is equipped with 1.75KB of Flash program memory, providing ample space for application code. It also features 80 bytes of RAM, which is sufficient for handling data and variables in typical applications. The PIC16F527-E/SO is designed with power-saving features such as Power-Saving Sleep mode, which helps extend battery life in portable applications.

Overall, the PIC16F527-E/SO is a reliable and cost-effective solution for designers looking to implement intelligent control in their embedded systems, ranging from consumer electronics to industrial automation.
