Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Microchip Technology
Series PIC® 18F
Package Tube
Product Status Active
Core Processor PIC
Core Size 8-Bit
Speed 40MHz
Connectivity I²C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, LVD, Power Control PWM, QEI, POR, PWM, WDT
Number of I/O 24
Program Memory Size 8KB (4K x 16)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 768 x 8
Voltage - Supply (Vcc/Vdd) 4.2V ~ 5.5V
Data Converters A/D 5x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount

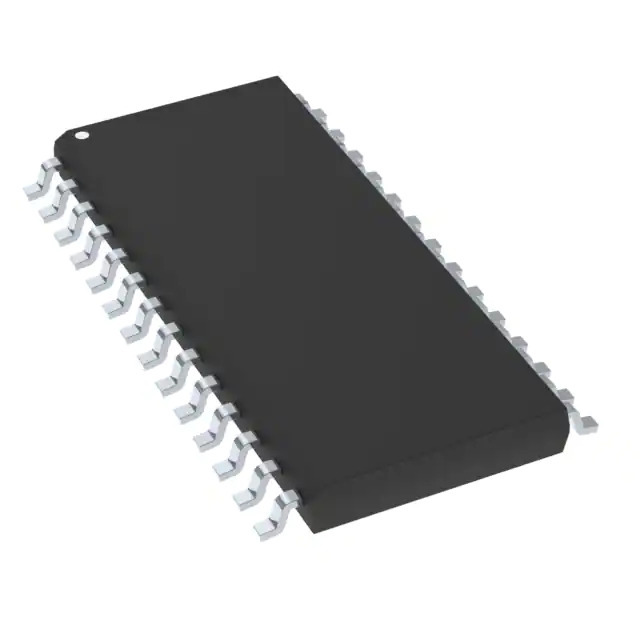

Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC
Base Product Number PIC18F2331
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1353514-PIC18F2331-E/SO
Ultra Librarian 3D Model Ultra Librarian PIC18F2331-E/SO CAD Model

Description

Microchip Technology PIC18F2331-E/SO Microcontroller

The PIC18F2331-E/SO from Microchip Technology is a high-performance microcontroller that is part of the renowned PIC18F family, known for their advanced features and versatility in various applications. This particular model comes in a small-outline 28-pin package and is designed to cater to a wide range of embedded system applications, especially those requiring sophisticated motor control, such as robotics, automotive, and industrial control systems.

Key Features:

  • Core: The device is built around a powerful PIC18 core with an enhanced RISC architecture, featuring a C-compiler optimized instruction set for improved performance and efficiency.
  • Memory: It includes 8 KB of flash memory for program storage, ensuring ample space for complex applications, and 256 bytes of EEPROM for data that requires non-volatile storage.
  • I/O Pins: The microcontroller offers 24 programmable input/output pins, providing flexibility for interfacing with a wide array of peripherals and sensors.
  • PWM Modules: Equipped with specialized motor control PWM modules, the PIC18F2331-E/SO is adept at handling precise motor operations, making it suitable for advanced motor control applications.
  • Communication Interfaces: It supports various serial communication interfaces such as SPI, I2C, and UART, enabling easy connectivity and data exchange with other devices.
  • Analog-to-Digital Converter: The inclusion of a 10-bit, 5-channel ADC allows the microcontroller to convert analog signals into digital form for processing, critical for sensor-based applications.
  • Timers and Interrupts: Multiple timers and interrupt capabilities ensure accurate timing operations and responsive event handling.
  • Operating Voltage: The device operates within a range of 4.2V to 5.5V, providing a stable operating environment for various applications.

Applications:

The PIC18F2331-E/SO is ideal for applications that demand robust control capabilities and reliable performance. Its features make it particularly well-suited for:

  • Advanced motor control systems
  • Automotive applications
  • Industrial automation
  • Robotics
  • Smart home devices

With its combination of performance, memory, and specialized peripherals, the Microchip Technology PIC18F2331-E/SO microcontroller stands out as a top choice for designers and engineers looking to create sophisticated and reliable embedded systems.
