Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Mfr Microchip Technology
Series SmartFusion®2
Package Box
Product Status Obsolete
Type FPGA
For Use With/Related Products SmartFusion®2

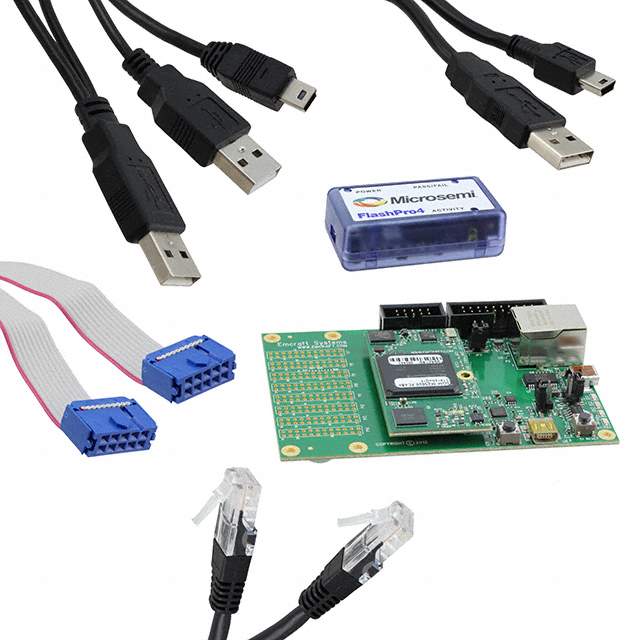

Contents Board(s), Cable(s), Programmer
Other Names 1100-1177
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8473.30.1180
Win Source Part Number 1284128-SF2-STARTER-KIT
Ultra Librarian 3D Model Ultra Librarian SF2-STARTER-KIT CAD Model

Description

Microchip Technology SF2-STARTER-KIT Overview

The SF2-STARTER-KIT from Microchip Technology is a comprehensive development platform designed for engineers and developers who are looking to jumpstart their projects with the SmartFusion2 SoC FPGA. This starter kit is ideal for various applications, including industrial, medical, automotive, and defense, where reliability, power efficiency, and integration are key concerns.

Key Features

  • SmartFusion2 SoC FPGA: At the heart of the kit is the SmartFusion2 System-on-Chip (SoC) FPGA, which combines a reliable FPGA fabric with a powerful ARM Cortex-M3 processor and high-speed serial communication interfaces.
  • Integrated Development Environment: The kit includes Libero SoC Design Suite, which provides a full-featured FPGA design toolset, from concept to production, with an easy-to-use interface and comprehensive debugging capabilities.
  • High-Speed Connectivity: With a range of interfaces such as Gigabit Ethernet, USB, and PCIe, the SF2-STARTER-KIT enables the development of applications requiring high-speed data transfers and connectivity.
  • Memory and Storage Options: The kit is equipped with DDR3 memory and SPI Flash, allowing developers to implement complex designs with ample storage for code and data.
  • Expansion Capabilities: An array of expansion headers and connectors are available for custom daughter cards and hardware extensions, ensuring the kit can adapt to a wide range of use cases.

Development Support and Resources

Microchip Technology provides robust support for the SF2-STARTER-KIT through extensive documentation, application notes, and design examples. Developers can also access a community forum and technical support to help troubleshoot issues and accelerate the development process.

Applications

The flexibility and rich feature set of the SF2-STARTER-KIT make it suitable for a variety of applications, including but not limited to:

  • Industrial Control Systems
  • Automotive Electronics
  • Medical Devices
  • Communication Infrastructure
  • Defense and Aerospace Systems

With the SF2-STARTER-KIT, Microchip Technology offers a versatile and powerful platform that enables designers to create innovative solutions and bring their ideas to life with reduced time-to-market.
