Microchip Technology SST25VF016B-75-4I-S2AF Serial Flash Memory

The SST25VF016B-75-4I-S2AF is a high-performance, 16-Mbit Flash memory device from Microchip Technology, offering a wealth of features for applications that demand reliable and flexible non-volatile data storage. Engineered with a 4-wire SPI-compatible interface, this serial Flash memory provides a cost-effective solution with fast read and write capabilities, making it ideal for a wide array of electronic applications, including embedded systems, consumer electronics, and telecommunications.

This particular model operates with a supply voltage range of 2.7V to 3.6V, ensuring compatibility with low-power designs and various logic levels. It boasts a high data transfer rate with 75 MHz clock frequency, enabling quick and efficient access to data. The SST25VF016B-75-4I-S2AF is equipped with a uniform 4 KB sectors and 32 KB blocks, which provides designers with flexibility in data management and optimization of memory usage.

Additionally, the device supports full command-set compatibility to JEDEC standards, which includes Read, ERASE, and PROGRAM operations. Its efficient erase functionality includes both sector and block erase modes, allowing for efficient memory management and a reduction of programming time. The device also features a burst-read mode, enhancing the continuous read capability which is crucial for streaming data applications.

The SST25VF016B-75-4I-S2AF has been designed with security and reliability in mind, incorporating end-of-write detection by both hardware and software means. This includes the Auto Address Increment (AAI) programming function, which facilitates faster programming by automatically incrementing the address after each byte is programmed. For security, the device offers a software write protection feature for the entire memory array or just specific blocks, safeguarding critical data from unintended alterations.

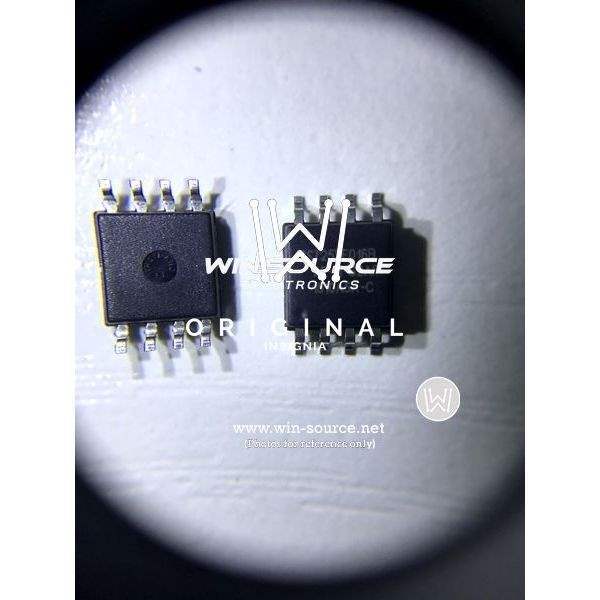

This serial Flash memory is available in an 8-contact SOIC package, with the part number indicating the industrial temperature range (I), which ensures operation in extreme environments from -40°C to +85°C. Its robust design and compatibility with the SPI protocol make the Microchip SST25VF016B-75-4I-S2AF an excellent choice for designers looking for a reliable, high-speed memory solution that integrates smoothly into their existing platforms.
