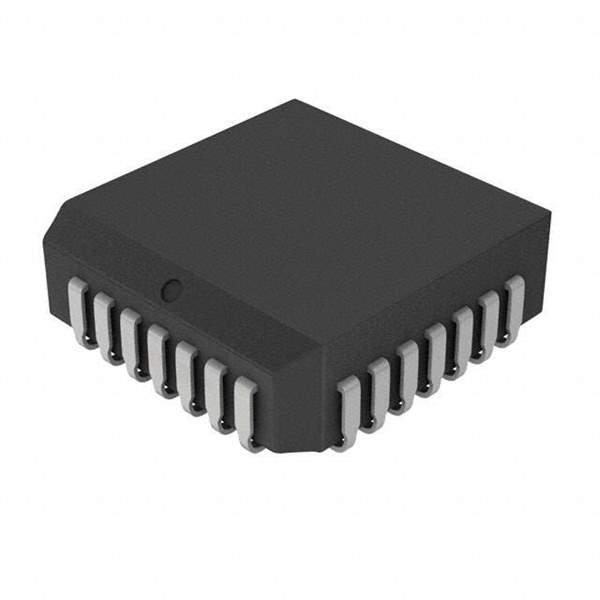

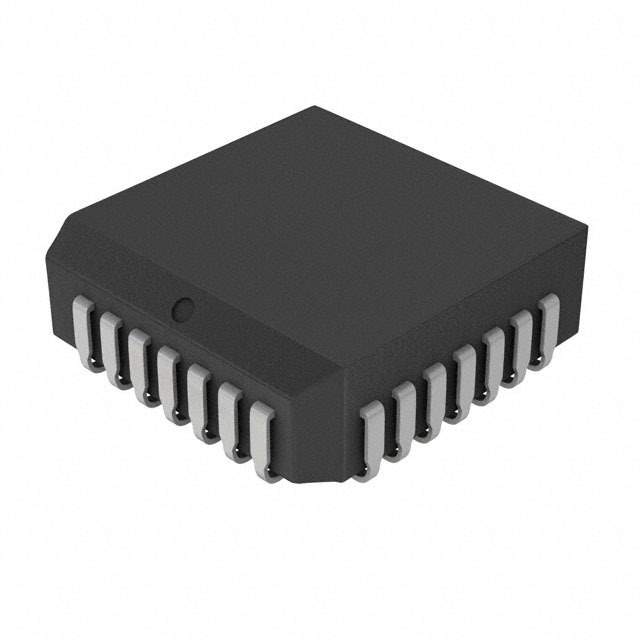

Microchip Technology TC7135CLI Product Overview

The TC7135CLI is a high-performance, low-power analog-to-digital converter (ADC) from Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This precision device is designed to offer exceptional accuracy and stability for a variety of applications, including industrial control systems, instrumentation, and automated test equipment.

Key Features

• High Resolution: The TC7135CLI boasts a 4½ digit resolution, providing precise measurement capabilities for demanding applications.
• Dual Slope Integration: Utilizing dual slope integration techniques, this ADC ensures noise rejection and delivers stable readings even in the presence of signal noise.
• Low Power Consumption: Designed for energy efficiency, the TC7135CLI is suitable for battery-operated devices, minimizing power requirements without sacrificing performance.
• Multiple Interface Options: The device includes a versatile digital interface, allowing for easy integration with microcontrollers and other digital systems.
• On-Chip Clock: An integrated oscillator simplifies the design by reducing the need for external timing components.
• Auto-Zero Function: The built-in auto-zero function ensures offset errors are minimized, enhancing the accuracy of measurements over time and temperature variations.

Applications

The TC7135CLI is ideal for a wide range of precision measurement applications, including:

• Portable Instrumentation
• Process Control Systems
• Data Acquisition Systems
• Laboratory Equipment
• Medical Devices

Technical Specifications

Some of the technical specifications of the TC7135CLI include:

• Input Voltage: 0 to 2V Full Scale
• Conversion Rate: Up to 13 conversions per second
• Power Supply Voltage: 5V ±5%
• Operating Temperature Range: -40°C to +85°C

The TC7135CLI from Microchip Technology represents a blend of precision, reliability, and efficiency, making it an excellent choice for professionals seeking a high-quality ADC solution. With its robust feature set and versatile application potential, the TC7135CLI is set to be a valuable component in any precision measurement system.
