Same model may have multiple batches, images only for reference.

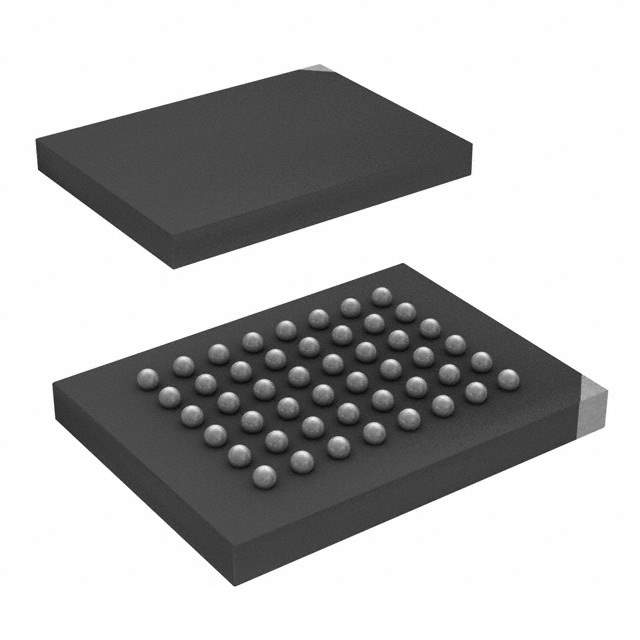

M29W800DB45ZE6E Real Image
Same model may have multiple batches, images only for reference.

M29W800DB45ZE6E

Part No M29W800DB45ZE6E
Manufacturer Micron Technology Inc.
Catalog Flash
Description NOR Flash Parallel 3V/3.3V 8M-bit 1M x 8/512K x 16 45ns 48-Pin TFBGA Tray / IC FLASH 8MBIT 45NS 48TFBGA
Datasheet
M29W800DB45ZE6E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Micron Technology Inc.
Packaging Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 8Mb (1M x 8, 512K x 16)
Write Cycle Time - Word, Page 45ns
Access Time 45ns
Memory Interface Parallel
Operating Supply Voltage 2.7 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 48-TFBGA
Manufacturer Package 48-TFBGA (6x8)
Win Source Part Number 784977-M29W800DB45ZE6E
Popularity Medium
Supply and Demand Status Limited
Family Name M29W800DB
Introduction Date December 13, 2001
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian M29W800DB45ZE6E CAD Model

Description

The Micron Technology Inc. M29W800DB45ZE6E is an 8Mb (1M x 8, 512K x 16) non-volatile FLASH-NOR memory with an access time of 45ns and a parallel memory interface.

  • Operating Supply Voltage: 2.7V to 3.6V
  • Write Cycle Time: 45ns for word and page
  • Package: 48-TFBGA (6x8)
  • Category: Integrated Circuit
  • Product Status: Obsolete
  • EOL Date: Estimated
  • Supply and Demand: Limited
