Same model may have multiple batches, images only for reference.

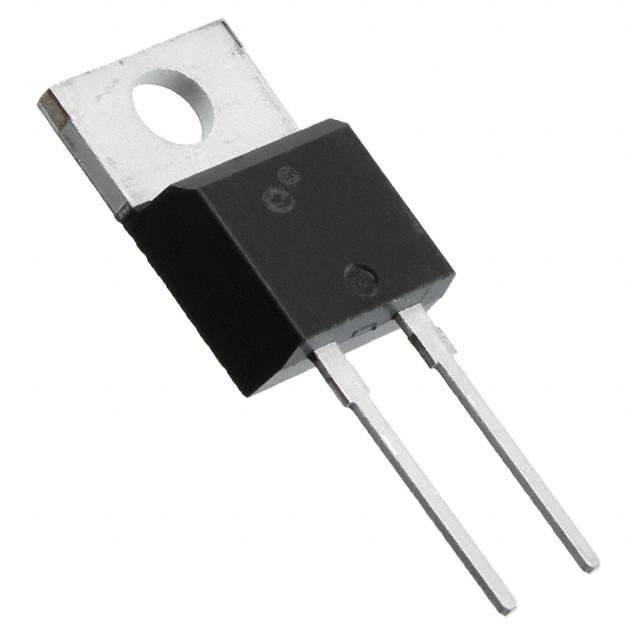

APT15D30KG Real Image
Same model may have multiple batches, images only for reference.

APT15D30KG

Part No APT15D30KG
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 15A TO220-2 / Diode Switching 300V 15A 2-Pin(2+Tab) TO-220
Datasheet
APT15D30KG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Tube
Part Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 300V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Maximum) @ If 1.4V @ 15A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 32ns
Current - Reverse Leakage @ Vr 150μA @ 300V
Mounting Style Through Hole
Package TO-220-2
Manufacturer Package TO-220-2
Operating Temperature - Junction -55°C ~ 150°C
Win Source Part Number 768672-APT15D30KG
Popularity Medium
Supply and Demand Status Limited
Family Name APT15D30K
Introduction Date May 06, 2004
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian APT15D30KG CAD Model

Description

The Microsemi Corporation APT15D30KG is a standard diode that has a current average rectified (Io) of 15A and a reverse recovery time (trr) of 32ns.

  • Package: TO-220-2
  • Operating Temperature Range: -55°C to 150°C
  • Maximum Forward Voltage (Vf) @ If: 1.4V @ 15A
  • Maximum DC Reverse Voltage (Vr): 300V
  • Alternatives: VS-15ETH03PbF, DPG15I300PA, DSEP15-03A, VS-15ETH03-M3
  • Status: Obsolete
  • Supply and Demand Status: Limited
