Same model may have multiple batches, images only for reference.

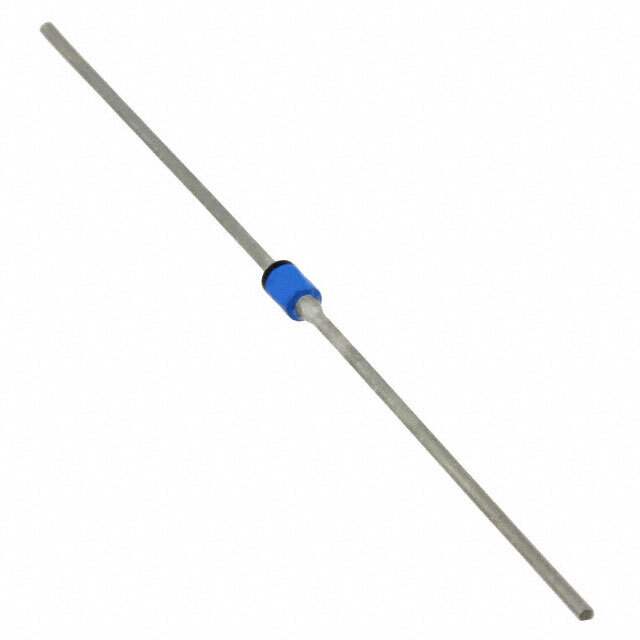

JANTX1N4249 Real Image
Same model may have multiple batches, images only for reference.

JANTX1N4249

Part No JANTX1N4249
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 1A AXIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V (1kV)
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 3A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 5μs
Current - Reverse Leakage @ Vr 1μA @ 1000V
Mounting Through Hole
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 101338-JANTX1N4249
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian JANTX1N4249 CAD Model

Description

The Microsemi Corporation 101338-JANTX1N4249 is a through-hole mounted standard diode with a maximum DC reverse voltage of 1000V (1kV).

  • Average Rectified Current: 1A
  • Forward Voltage: 1.3V @ 3A
  • Reverse Recovery Time: 5µs
  • Reverse Leakage Current: 1µA @ 1000V
  • Capacitance @ Vr, F: None
  • Operating Temperature Range: -65°C to 175°C
  • Supply and Demand Status: Balanced
  • Quantity per Package: One
