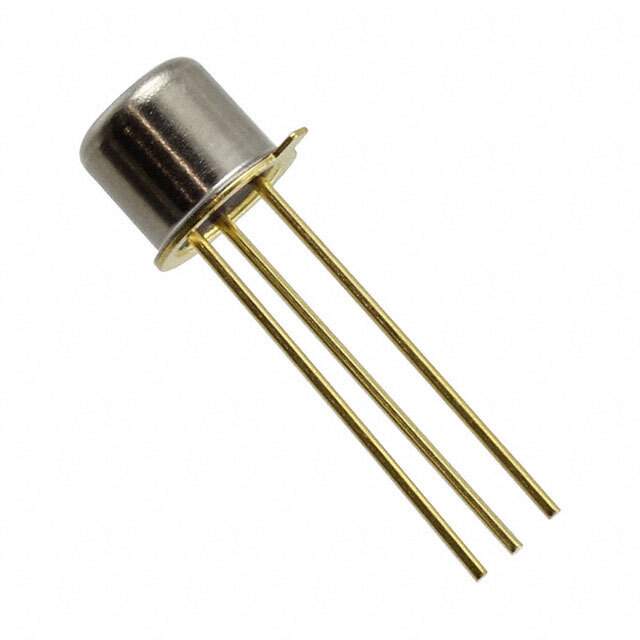

JANTXV2N2857 Real Image
Same model may have multiple batches, images only for reference.

JANTXV2N2857

Part No JANTXV2N2857
Manufacturer Microsemi Corporation
Catalog RF Transistors (BJT)
Description RF TRANS NPN 15V 500MHZ TO72
Datasheet
JANTXV2N2857 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features RF Transistor NPN 15V 40mA 500MHz 200mW Through Hole TO-72
Manufacturer Microsemi Corporation
Series Military, MIL-PRF-19500/343
Package Bulk
Part Status Obsolete
Operating Temperature Range -65°C ~ 200°C (TJ)
Mounting Through Hole
Package TO-72-3 Metal Can
Case / Package TO-72
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 1086-20737, 1086-20737-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922371-JANTXV2N2857
Ultra Librarian 3D Model Ultra Librarian JANTXV2N2857 CAD Model

Description

The Microsemi Corporation 922371-JANTXV2N2857 is an RF transistor NPN designed for high-frequency applications.

  • Frequency - Max: 500MHz
  • Power - Max: 200mW
  • Operating Temperature: -65°C ~ 200°C
  • Package / Case: TO-72-3 Metal Can
  • Mounting Type: Through Hole
  • Supply and Demand Status: Balanced
  • REACH: Unaffected
