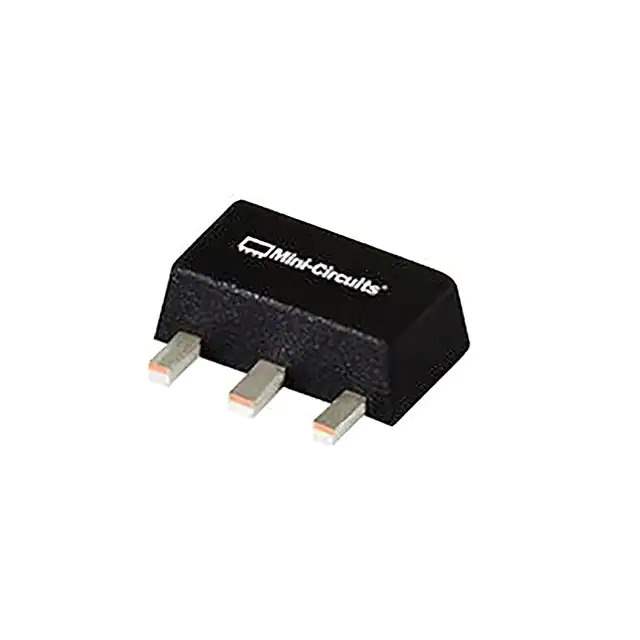

PHA-13HLN+ Real Image
Same model may have multiple batches, images only for reference.

PHA-13HLN+

Part No PHA-13HLN+
Manufacturer Mini-Circuits
Catalog RF Amplifiers
Description IC RF AMP CATV 1MHZ-1GHZ SOT89
Datasheet
PHA-13HLN+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 1MHz ~ 1GHz
P1dB 28.7dBm
Gain 20.4dB
Noise Figure 1.4dB
RF Type CATV, Cellular
Voltage - Supply 8V
Current - Supply 234.1mA
Test Frequency 5.02GHz
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 847104-PHA-13HLN+
Ultra Librarian 3D Model Ultra Librarian PHA-13HLN+ CAD Model

Description

The Mini-Circuits 847104-PHA-13HLN+ is an RF amplifier designed for CATV and cellular applications. It operates at a frequency range of 1MHz to 1GHz with a gain of 20.4dB and a noise figure of 1.4dB.

  • Frequency Range: 1MHz to 1GHz
  • Gain: 20.4dB
  • Noise Figure: 1.4dB
  • Supply Voltage: 8V
  • Current Consumption: 234.1mA
  • P1dB: 28.7dBm
  • Package Type: TO-243AA
  • Mounting Type: Surface Mount
  • Device Package: SOT-89
  • Packaging: Tape and Reel
  • Standard Package Quantity: 1,000 pcs
  • Manufacturer: Mini-Circuits
