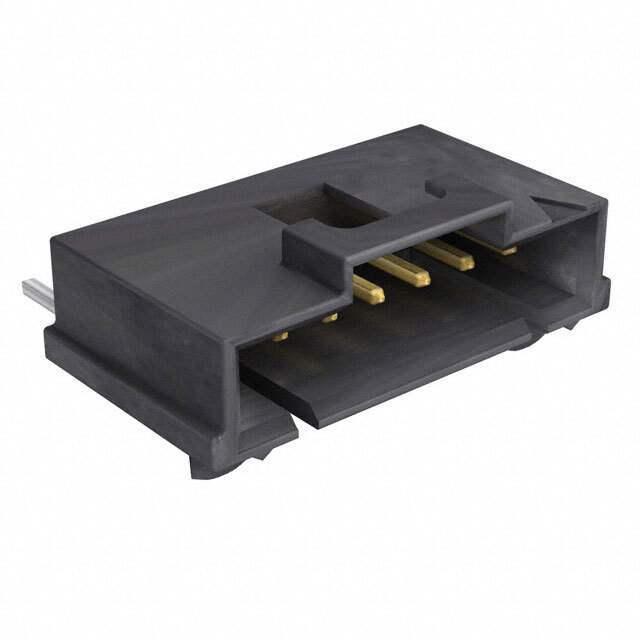

0015912075 Molex
Same model may have multiple batches, images only for reference.

0015912075

Part No 0015912075
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 2.54MM
Datasheet
0015912075 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Tube
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Ultra Librarian 3D Model Ultra Librarian 0015912075 CAD Model

Description

Connector Header Surface Mount, Right Angle 7 position 0.100" (2.54mm)
