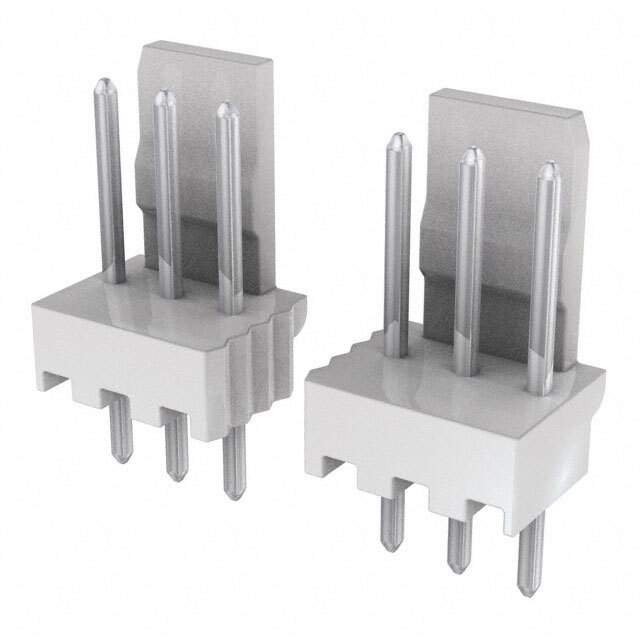

0022041121

Name: 0022041121
Brand: Molex, LLC
SKU: 1380348
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0022041121
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 12POS 2.5MM / Connector Header Through Hole 12 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	KK250, 5045
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	12
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.295" (7.49mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.559" (14.20mm)
Insulation Height	0.461" (11.70mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	-
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	002204
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1 pcs
Win Source Part Number	1380348-0022041121
Ultra Librarian 3D Model	Ultra Librarian 0022041121 CAD Model

Alternative Products

Description

The Molex KK250, 5045 is a male pin header connector designed for reliable and secure connections.

Positions: 12
Fastening Type: friction lock
Termination: solder
Mounting: through-hole
Material: brass
Contact Finish: tin
Package: bulk
Series: KK250, 5045
Manufacturer: Molex, LLC
