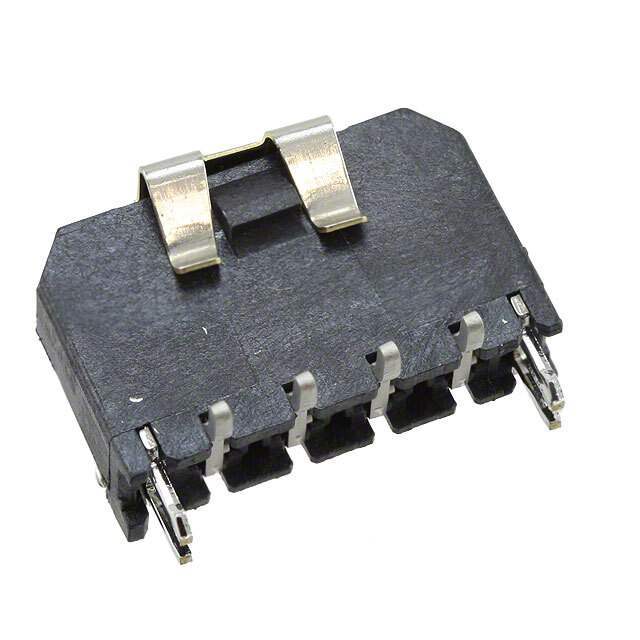

0436500421 Molex
Same model may have multiple batches, images only for reference.

0436500421

Part No 0436500421
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 4POS 3MM
Datasheet
0436500421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 0436500421 CAD Model

Description

Connector Header Surface Mount 4 position 0.118" (3.00mm)
