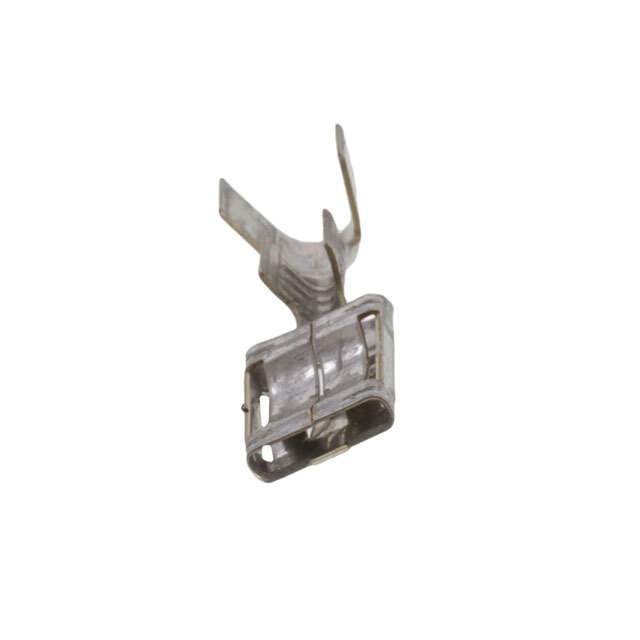

Same model may have multiple batches, images only for reference.

05-06-0301

Name: 05-06-0301
Brand: Molex, LLC
SKU: 991798
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	05-06-0301
Manufacturer	Molex, LLC
Catalog	Terminals
Description	Quick Disconnect Terminal 14-22AWG Brass Alloy F 15.9mm Tin T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	0301
Contact Gender	Female
Contact Material	Brass
Contact Plating	Tin
Country of Origin	US
Gender	Female
Insulation	Non-Insulated
Insulation Diameter	787.4 µm
Length	16.002 mm
Mount	Free Hanging
Packaging	Tape & Reel
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Tab Length	6.985 mm
Tab Thickness	508 µm
Tab Width	4.7498 mm
Termination	Crimp
Wire/Cable Gauge	22 AWG
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Win Source Part Number	991798-05-06-0301
Categories	Terminals
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 05-06-0301 CAD Model

Alternative Products

Description

The 991798-05-06-0301 is a female crimp terminal manufactured by Molex.

Pitch: 2.54 mm
Termination: Crimp
Contact Material: Brass
Contact Plating: Tin
Length: 16.002 mm
Tab Width: 4.7498 mm
Mounting: SMD (SMT)
Insulation: Non-Insulated
Tab Thickness: 508 µm
RoHS Compliant: Yes
Radiation Hardening: No
Wire/Cable Gauge: 22 AWG
Wire Gauge (Max): 22 AWG
Wire Gauge (Min): 14 AWG
Supply and Demand Status: Shortage
