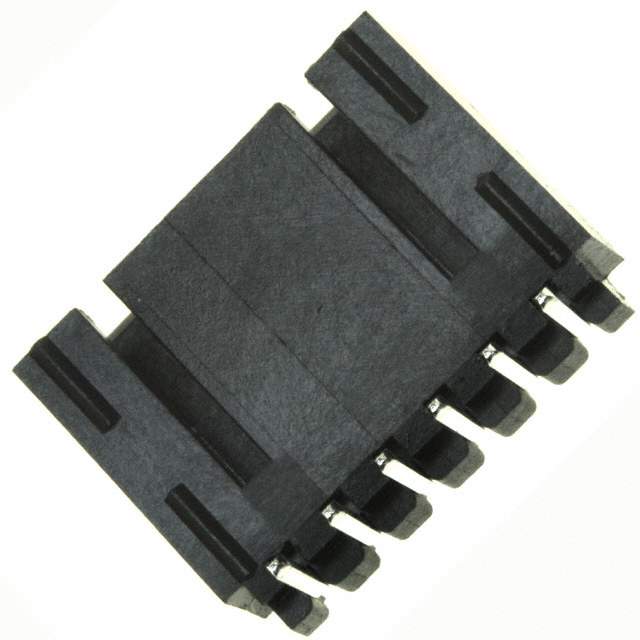

The SL 70553 series is a 6-position male pin header connector designed for various applications such as automotive, general purpose, industrial, and medical. It features a solder termination and a latch holder fastening type for secure connections. The connector is made of phosphor bronze contact material with a tin finish. With a voltage rating of 250V, it provides reliable electrical performance. The SL 70553 connector has a pitch of 0.100" (2.54mm) and a contact finish thickness of 150.0µin (3.81µm). It is designed for through-hole, right-angle mounting and has a shrouded, 4-wall design for added protection. The connector operates in a temperature range of -40°C to 105°C, making it suitable for a wide range of environments. It is packaged in a tube and comes in a standard package of 30 pieces.

• Positions: 6
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Material: Phosphor Bronze
• Contact Finish: Tin
• Voltage Rating: 250V
• Pitch: 0.100" (2.54mm)
• Contact Finish Thickness: 150.0µin (3.81µm)
• Mounting Type: Through Hole, Right Angle
• Design: Shrouded, 4-Wall
• Temperature Range: -40°C to 105°C
• Package: Tube
• Package Quantity: 30
