Part No 0705550039
Manufacturer Molex, LLC
Catalog Rectangular Connectors

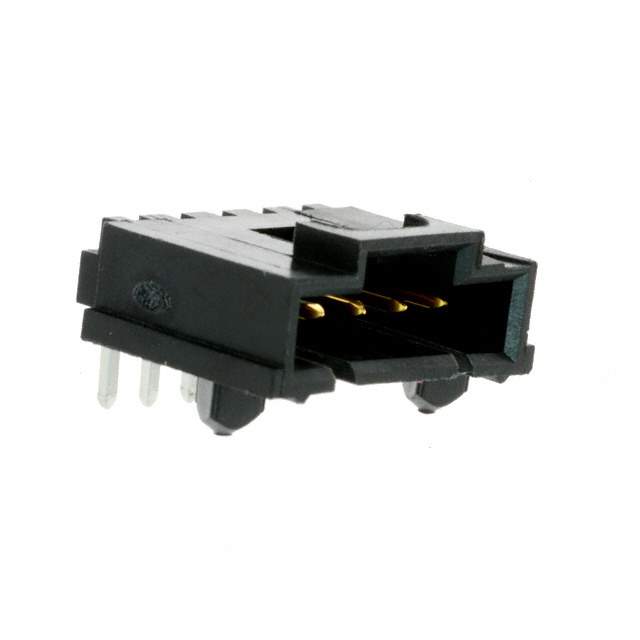

Description 2.54mm (.100") Pitch SL™ Header, Single Row, Right Angle, .120" Pocket, Shrouded,with Press-fit Plastic Peg, 5 Circuits, 0.38μm (15μ") Gold (Au) Selective Plating, Tin(Sn) PC Tail Plating | CONN HEADER R/A 5POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.215" (5.45mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0μin (0.38μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Industrial, Medical
Manufacturer Pack Quantity 1,280
MSL Level 1 (Unlimited)
Win Source Part Number 1120749-0705550039
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0705550039 CAD Model

Description

The 0705550039 is an electronic component manufactured by Molex.

  • Connector Type: Header
  • Positions: 5
  • Application: Board to Cable/Wire
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness (Mating): 15.0μin (0.38μm)
  • Contact Finish (Post): Tin
  • Contact Finish Thickness (Post): 74.8μin (1.90μm)
  • Supply and Demand Status: balanced

This product is designed to provide reliable performance for electronic devices that require a high-quality component. With its balanced supply and demand status, this product is readily available for purchase.
