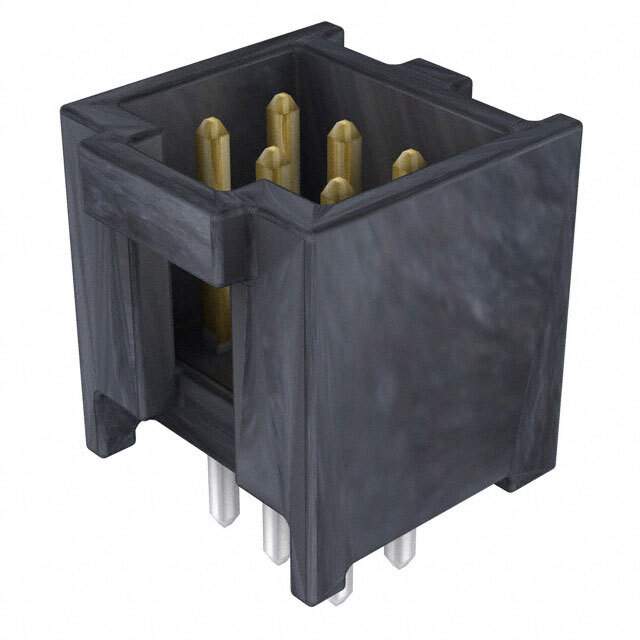

0901301206

Name: 0901301206
Brand: Molex, LLC
SKU: 848920
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	0901301206
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	C-Grid III 90130
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.510" (12.95mm)
Insulation Height	0.429" (10.90mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	118.1µin (3.00µm)
Applications	Automotive, General Purpose
Base Product Number	090130
Standard Package	2,560 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	848920-0901301206
Ultra Librarian 3D Model	Ultra Librarian 0901301206 CAD Model

Alternative Products

Description

The C-Grid III 90130 Header is a high-quality male pin connector designed for rectangular connector applications.

Connector Type: Male Pin
Positions: 6
Rows: 2
Mounting: Through-Hole
Packaging: Tray
Package Quantity: 2,560 pieces
Contact Material: Brass
Contact Finish: Gold
Insulation Material: Polyester, Glass-Filled
Pitch: 0.100" (2.54mm)
Contact Finish Thickness: 15.0µin (0.38µm)
Applications: Automotive and General-Purpose
