Same model may have multiple batches, images only for reference.

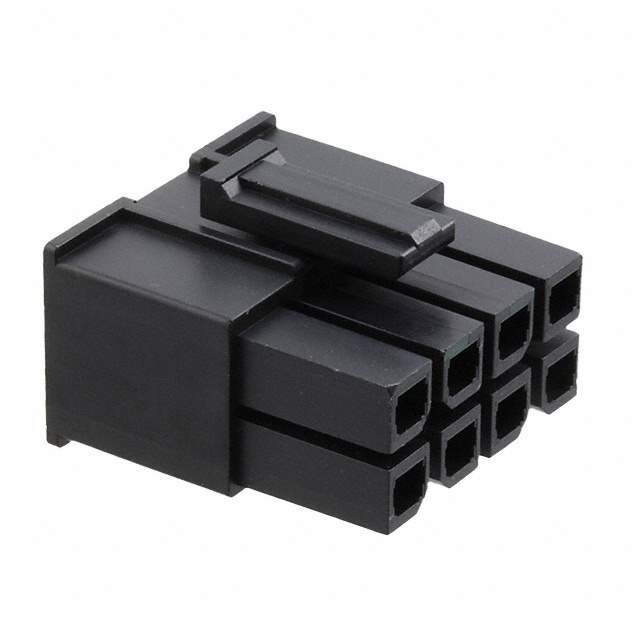

1716920108 Real Image
Same model may have multiple batches, images only for reference.

1716920108

Part No 1716920108
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 8POS 5.70MM / 8 Rectangular Connectors - Housings Receptacle Black 0.224" (5.70mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr Molex, LLC
Series Mega-Fit
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.224" (5.70mm)
Number of Rows 2
Row Spacing 0.224" (5.70mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Temperature Range - Operating -40°C ~ 120°C
Note Contacts Not Included
Base Product Number 171692
Standard Package 640 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 905475-1716920108
Ultra Librarian 3D Model Ultra Librarian 1716920108 CAD Model

Description

The 905475-1716920108 is a rectangular connector housing from the Mega-Fit series by Molex, LLC. It is designed for use in electrical and electronic systems that require reliable and secure connections.

  • Series: Mega-Fit
  • Connector Type: Rectangular Connector Housing
  • Number of Positions: 8
  • Pitch: 0.224" (5.70mm)
  • Color: Black
  • Mating Type: Receptacle
  • Fastening Type: Latch Lock
  • Contact Termination: Crimp
  • Temperature Range: -40°C to 120°C
