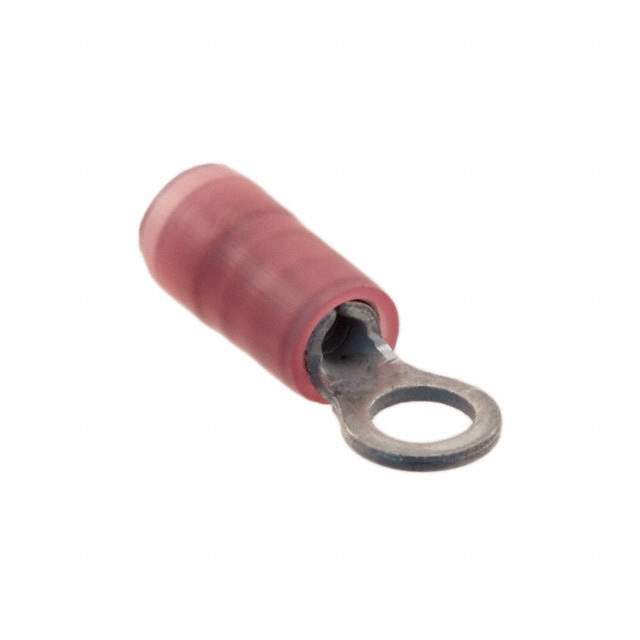

0190730009 Real Image
Same model may have multiple batches, images only for reference.

0190730009

Part No 0190730009
Manufacturer Molex, LLC
Catalog Terminals
Description CONN RING CIRC 18-22AWG #6 CRIMP / Ring Terminal Connector 6 Stud Circular 18-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer Molex
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 6 Stud
Width - Outer Edges 0.230" (5.84mm)
Length - Overall 0.710" (18.03mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.140" (3.56mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 019073
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 19073-0009,WM19141,019073-0009,AA-820-06,190730009-E,0190730009-E,019073-0009-E,19073-0009-E,190730009
Standard Package 1,000
Win Source Part Number 1333834-0190730009
Ultra Librarian 3D Model Ultra Librarian 0190730009 CAD Model

Description

The Molex 1333834-0190730009 is a red ring connector designed for crimp termination.

  • Termination: Serrated
  • Contact Material: Copper
  • Insulation Material: Polyamide
  • Wire Gauge: 18-22 AWG
  • Stud/Tab Size: 6 stud/tab
  • Insulation Diameter: 0.140” (3.56mm)
  • Overall Length: 0.710” (18.03mm)
  • Outer Edge Width: 0.230” (5.84mm)
  • Insulated: Yes
  • Terminal Type: Circular
  • Packaging: Bulk
  • Standard Package: 1,000
  • Mounting: Free Hanging (In-Line)
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
