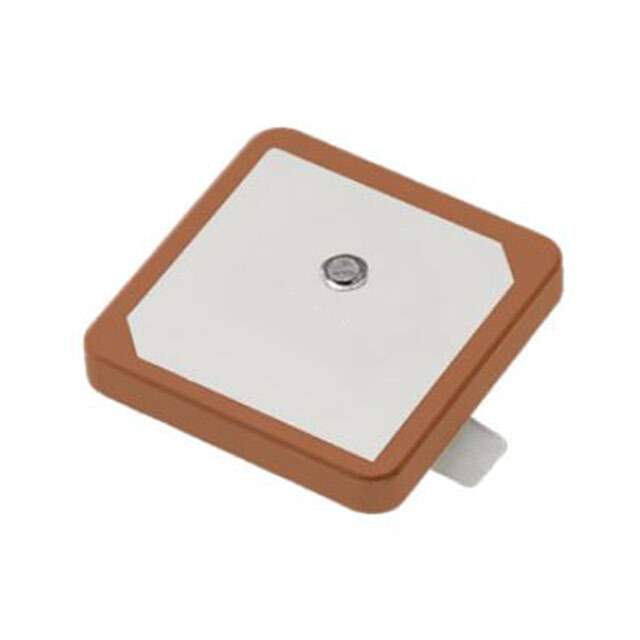

2042860001 Real Image
Same model may have multiple batches, images only for reference.

2042860001

Part No 2042860001
Manufacturer Molex, LLC
Catalog RF Antennas
Description RF ANT CER PATCH SOLDER SMD / Beidou, GLONASS, GPS Ceramic Patch RF Antenna 5.5dBi Solder Through Hole
Datasheet
2042860001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Molex
Package Tray
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Antenna Type Ceramic Patch
Number of Bands 1
Return Loss -10dB
Gain 5.5dBi
Termination Solder
Mounting Type Through Hole
Height (Max) 0.157" (4.00mm)
Applications Beidou, GLONASS, GPS
Base Product Number 204286
Standard Package 50
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8529.10.4040
Win Source Part Number 1351614-2042860001
Ultra Librarian 3D Model Ultra Librarian 2042860001 CAD Model

Description

The ceramic patch antenna is a part of the navigation RF family/standard with a gain of 5.5dBi and a frequency group of UHF (1GHz ~ 2GHz).

  • Antenna Type: Ceramic Patch
  • Termination: Solder
  • Suitable for: Beidou, GLONASS, and GPS
  • Package: Tray
  • Units per Package: 50
  • Height: 0.157 inches (4.00mm)
  • Return Loss: -10dB
