The TPS2553DBVR-1 from Texas Instruments is a state-of-the-art power-distribution switch designed for USB and other applications where precision current limiting is required. This advanced device is integrated with a multitude of features that ensure reliable protection for sensitive electronics.

Key Features

• Adjustable Current-Limit Threshold: Users can set the current limit from 75 mA to 1.2 A via an external resistor. This flexibility allows for precise control over the power distribution, ensuring compatibility with a wide range of devices.
• Fast Overcurrent Response: The TPS2553DBVR-1 reacts quickly to overcurrent conditions, typically responding in less than 2 µs, which helps to prevent damage to the USB port and connected devices.
• Reverse Voltage Protection: This feature prevents damage to the switch and the downstream devices in case of reverse polarity at the output.
• Accurate Current Limiting: The device features ±6% accuracy for current limiting, providing a reliable and precise level of protection for connected loads.
• Thermal Shutdown Protection: The TPS2553DBVR-1 includes an intelligent thermal shutdown mechanism that protects the device and the system during overcurrent events.

Applications

• USB power distribution and protection
• Hot-swap power supplies
• Power management for consumer electronics
• Industrial and automotive applications

Package and Reliability

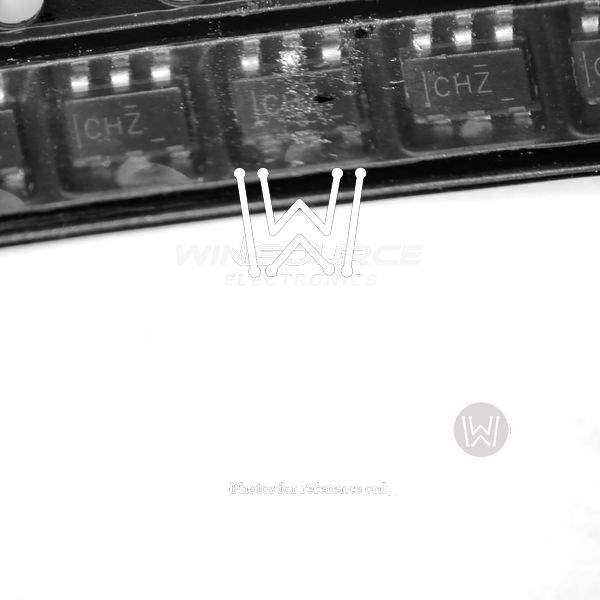

The TPS2553DBVR-1 comes in a compact SOT-23-6 package, which is ideal for space-constrained applications. The device is characterized for operation over a temperature range of –40°C to 85°C, ensuring reliable performance in a variety of environments.

Manufacturer Support

Texas Instruments provides comprehensive technical support for the TPS2553DBVR-1, including detailed datasheets, application notes, and design resources to facilitate integration into your projects.
