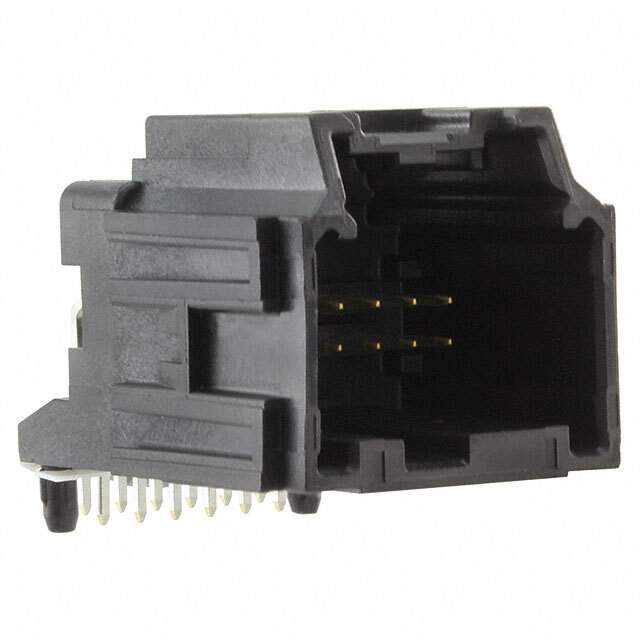

Part No 34691-0120
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Stac64 Right-Angle Header Assembly, 12 Circuits, Polarization A, Black, Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Rectangular
Contact Material Brass
Contact Plating Tin
Country of Origin US
Current Rating 10 A
Depth 31.89 mm
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 22.05 mm
Housing Material Thermoplastic
Material Thermoplastic
Max Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 12
Number of Contacts 12
Number of Positions 12
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 500 V
Width 23.88 mm
Win Source Part Number 1215056-34691-0120
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 34691-0120 CAD Model

Description

The Molex 1215056-34691-0120 is a rectangular connector that is through-hole terminated.

  • Termination: Through-Hole
  • Positions: 12
  • Rows: 2
  • Pitch: 2.54 mm
  • Voltage Rating: 500 V
  • Current Rating: 10 A
  • Contact Material: Brass
  • Contact Plating: Tin
  • Housing Material: Thermoplastic
  • Color: Black
  • Height: 22.05 mm
  • Width: 23.88 mm
  • Contacts: 12
  • Gender: Male
  • Mounting: Through Hole
  • RoHS: Compliant
  • Halogen: Low Halogen
